Think about a small baby making an attempt to push a full-size grownup in a purchasing cart. It’s potential to get the cart transferring (barely), however it might be very laborious to start out or cease. Steering might be disastrous—the kid might not make it round a nook in time.
A excessive inertia ratio between a load and a servo motor is sort of a small baby pushing a heavy cart; it might be tough to start out and cease, and response will be sluggish. (Picture courtesy of GAM.)
“In servo tuning, that is whenever you don’t have sufficient of a ratio in your gearbox, and your inertia ratio between your motor and cargo is simply too excessive,” says Matt Ruggles, senior design engineer at GAM, a U.S.-based producer of servo gear reducers and different movement management parts.
Now take into account a big grownup who doesn’t know their very own power, pushing a small baby in a purchasing cart. They may utterly overpower the cart, making turns too quick and throwing the kid round contained in the basket, probably hurting them.
“This could be the other finish the place the motor inertia is way increased than the load inertia,” says Ruggles. “You’ve in all probability put more cash into your motor and drive than it is advisable, and you may harm your gear by altering the movement too shortly.”
Inertia matching is a key consider sizing a servo system. It refers back to the ratio between load inertia and motor inertia, which impacts a motor’s capability to regulate its load throughout acceleration and deceleration.
Inertia Ratio = JLOAD / JMOTOR
the place JLOAD is the load inertia mirrored to the motor and JMOTOR is the motor inertia. Load inertia consists of all rotating parts within the system, such because the drive, exterior mass and coupling.
Designers should decide what inertia ratio is appropriate primarily based on the dynamics of the movement and the extent of accuracy required. A 1:1 inertia ratio is taken into account preferrred as a result of it supplies the most effective management and is best to tune. Nevertheless, striving for an ideal match is just not at all times sensible, and pushing too shut can result in an outsized motor, increased system value and elevated vitality consumption.
“Usually, as of late you possibly can stand up to a ten:1 ratio the place the load is 10 instances larger than the motor,” says Ruggles. “When you get past that, the servo tuning begins to turn out to be far more tough. It was you’d attempt to get inside 5:1, however servo controls have gotten significantly better.”
When inertia matching is poor as a consequence of a excessive inertia ratio or improper tuning, the system might reply sluggishly and produce vibration or noise. The load might fail to settle at its meant place, persevering with to float as a substitute of reaching its endpoint. It might overshoot its goal, then oscillate backwards and forwards because the motor tries to compensate. Because the motor is working more durable to regulate the load, it might additionally draw extra present, impacting effectivity and value.
One approach to get a smaller motor to regulate a bigger load is to convey a excessive inertia ratio nearer to 1:1 by including a gearbox.
JREFLECTED = (JLOAD / i2) + JGEARBOX
the place i is the gearbox ratio, and JGEARBOX is the inertia of the gearbox.
“The ratio of the gearbox impacts the inertia ratio by a sq. issue—so a ten:1 gearbox has a 100:1 impression on the inertia ratio,” explains Ruggles. “You will get an enormous benefit in a short time by including a gearbox to your system.”
Whereas the gearbox itself provides inertia to the system, its contribution is small in comparison with the discount achieved by means of the gear ratio.
Correct servo tuning also can counteract the results of a excessive inertia ratio by giving the servo motor a greater sense of how one can management the load. Going again to the purchasing cart analogy, it’s just like the baby pushing the cart studying to anticipate the way it will react, slowing down forward of a flip or making ready prematurely to cease on the finish of the aisle.

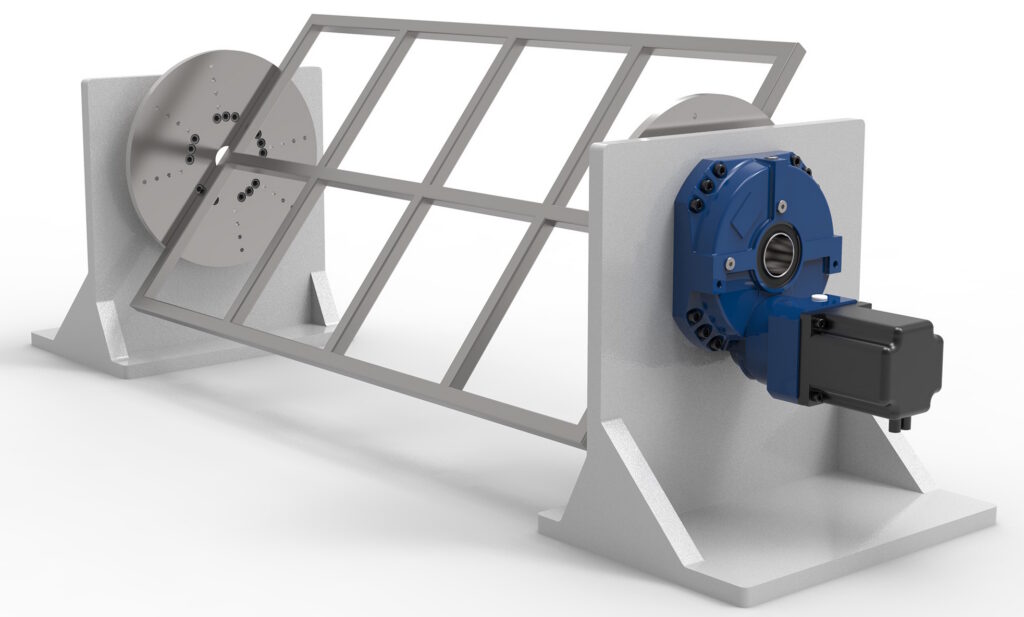

Utilizing a excessive ratio, precision gearbox, comparable to GAM’s GPL robotic planetary, brings the inertia ratio nearer to 1:1, permitting a smaller motor to exactly management the big, heavy load of a trunnion, for instance, generally used as robotic weld positioners in automotive functions. (Picture: GAM.)
One other approach to scale back the inertia ratio is to make use of a bigger motor with increased inertia. Nevertheless, bigger motors are sometimes dearer and run at decrease speeds.
“The trick with including a gearbox is that it’s going to decelerate the output velocity primarily based on what the motor is spinning at,” says Ruggles. “If you happen to try to use a big inertia motor that may’t run very quick mixed with a gearbox, now your output goes to be very gradual.”
Functions that depend on decrease inertia ratios embrace techniques with excessive acceleration and deceleration or exact positioning calls for; for instance, robotics within the packaging trade want bottles to line up completely with a nozzle after which swiftly transfer out of place.
GAM affords a variety of gearbox choices, from high-performance options to more cost effective designs.
“Software necessities can drive what sort of gearboxes and motors you utilize, all the way in which down the system,” says Ruggles. “We now have a full engineering group for the extra enjoyable designs the place you actually should dive in and do some downside fixing with a view to obtain what the client is on the lookout for.”
To be taught extra, go to GAM.
