We’ve all been there: a Raspberry Pi mission grows bigger and bigger as new concepts come to thoughts. Subsequent factor , you’ve run out of USB ports and it is advisable to add a USB hub to the combo. Between that and the HDMI adapter, energy cable, and different parts wired to the GPIO pins, issues are actually beginning to get out of hand. If solely Raspberry Pis got here with only a few extra USB ports…

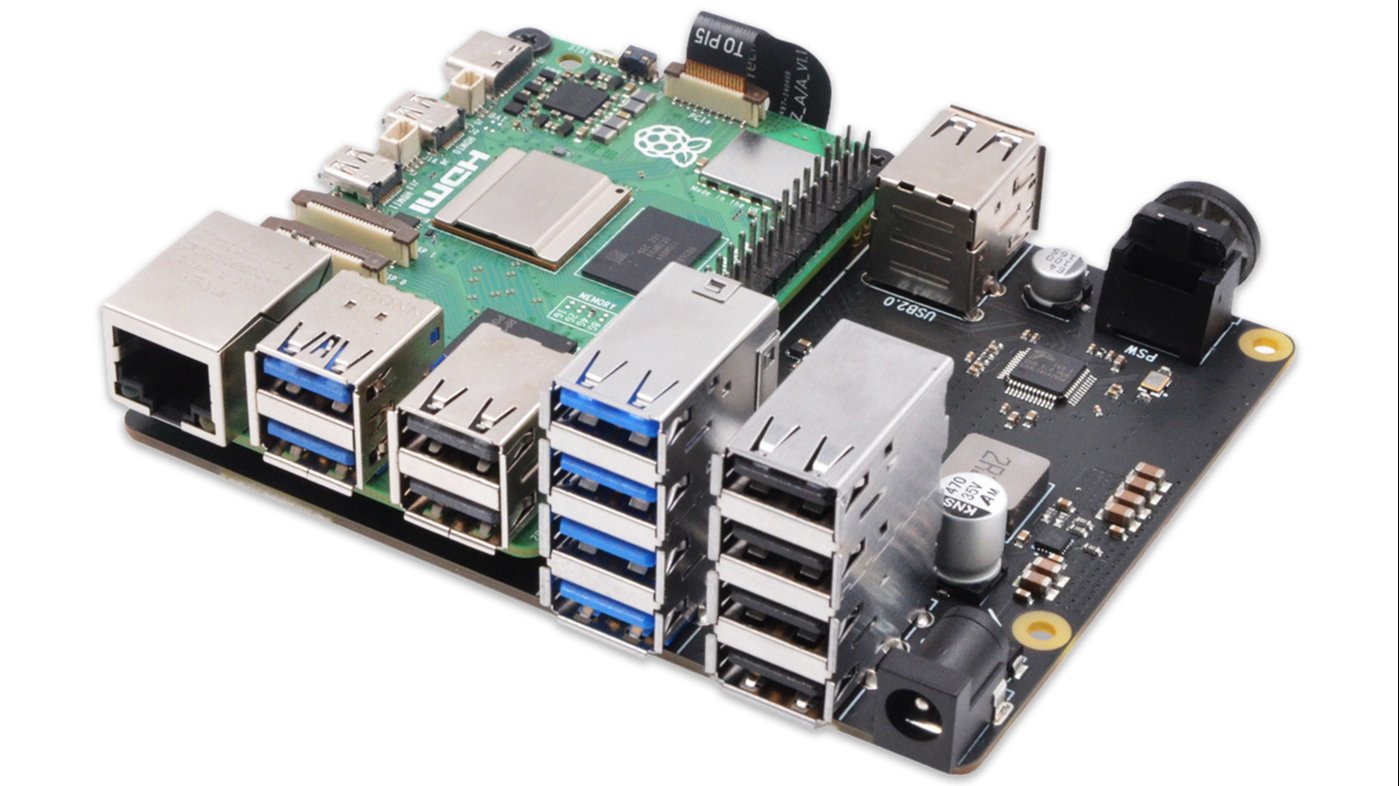

Now they do—or at the very least they do if you happen to hook them as much as a brand new growth board from Suptronics. The X1013 expands the USB port depend of those little computer systems to an nearly ridiculous 14. It’s appropriate with the Raspberry Pi 5, and provides 4 USB 3.0 ports and 6 USB 2.0 ports to the 4 ports already onboard. As a bonus, the USB 2.0 ports are cut up between the back and front of the board to make wire routing just a bit simpler for advanced tasks.
The again of the board (📷: Suptronics)
The X1013 connects to the Pi’s 16-pin FFC PCIe connector with an included cable. A PCIe-to-USB chipset provides the extra USB 3.0 ports, whereas one other USB hub chip provides the USB 2.0 ports.
The Raspberry Pi is put in on high of the growth board. A barrel jack on the X1013 provides your entire system with energy, and a pair of pogo pins are used to cross energy via to the Pi.
This can be a very slick means so as to add extra USB ports to a Raspberry Pi 5, however since all 10 of the extra ports share a PCIe Gen2 x1 connection, the theoretical bandwidth of the mixed USB ports exceeds the bandwidth of the PCIe connection. As such, you shouldn’t count on nice efficiency if it is advisable to transfer lots of knowledge. However for many functions, this in all probability gained’t matter—it should deal with a number of gadgets utilizing average quantities of bandwidth simply high-quality.
The underside of X1013 (📷: Suptronics)
Take a look at the product web page for extra particulars on the X1013 growth board.
