Science fiction films have usually imagined a future the place we work together with digital shows by grabbing, spinning, and sliding digital parts with our fingers. Contemplating how pure and intuitive any such interface can be, it’s a surprise that no sensible implementations have been developed but. In case you are ready for a person interface like those depicted in Minority Report or Iron Man, you will should preserve ready.
Researchers on the College of Maryland and Aarhus College are working to carry us nearer to that future, nonetheless. Focusing initially on multi-display information visualization techniques, they’ve developed a novel interface that they name Datamancer. It permits customers to level on the show they need to work with, then carry out gestures to work together with its functions. On this approach, Datamancer might give an enormous productiveness enhance to these working in information visualization, the place advanced graphics and charts should be frequently tweaked to realize insights.
The system’s {hardware} (📷: B. Patnaik et al.)
In contrast to most earlier gesture-based interfaces, which require giant, mounted installations or digital actuality setups, Datamancer is a totally cellular, wearable machine. It consists of two principal sensors: a finger-mounted pinhole digital camera and a chest-mounted gesture sensor, each related to a Raspberry Pi 5 pc worn on the waist. Collectively, these parts permit customers to manage and manipulate visualizations unfold throughout a room filled with shows — corresponding to laptops, tablets, and huge TVs — with no need to the touch them or use a mouse.
To provoke an interplay, the person factors at a display screen utilizing the finger-mounted ring digital camera and presses a button. This prompts a fiducial marker detection system that identifies every show utilizing dynamic ArUco markers. As soon as a show is in focus, the person can use a set of bimanual gestures to zoom, pan, drag, and drop visible content material. For instance, making a fist with the best hand pans the visualization, whereas a fist with the left hand zooms in or out. A pinch gesture with the best hand locations content material, and the identical gesture with the left removes it.
The star of the gesture recognition system is a Leap Movement Controller 2, a high-precision optical tracker mounted on the person’s chest. It affords steady monitoring of each fingers, with a spread of as much as 110 centimeters and a 160-degree area of view. The ring-mounted digital camera, an Adafruit Extremely Tiny GC0307, detects fiducial markers from as much as 7 meters away.

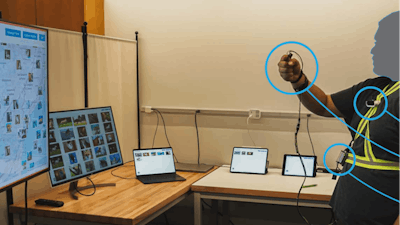

A totally-equipped person (📷: B. Patnaik et al.)
The system’s computing duties are dealt with by a Raspberry Pi 5, outfitted with a 2.4 GHz quad-core Cortex-A76 processor and eight GB of RAM. It’s cooled by an energetic fan and powered by a 26,800 mAh Anker energy financial institution, offering greater than 10 hours of runtime. All of the {hardware} is mounted on a vest-style harness, designed for consolation and fast setup, taking a couple of minute to placed on.
In testing, Datamancer has been utilized in real-world software situations, together with a transportation administration middle the place analysts collaborate in entrance of a number of screens. Skilled evaluations and a person examine confirmed its potential to assist extra pure and versatile information evaluation workflows.
Whereas the system remains to be in improvement and never but prepared for mass adoption, Datamancer is a promising step towards the sort of intuitive, spatial interplay that has up to now solely existed in fiction.
