Immediately, we introduce new GNSS Flex pHATs and modules!
Whats up everybody and welcome again to a model new Friday Product Put up right here at SparkFun Electronics! This week, we’re excited to current to you a model new line of GNSS merchandise: Flex pHATs and Flex Modules that let you modify your PNT wants on the fly. Two GNSS modules can be found with this new pHAT individually or as a equipment; the mosaic-X5 and the LG290P. Merely connect these modules to the GNSS Flex pHAT to equip your Raspberry Pi or different 40-pin single board laptop with ultra-precise GNSS {hardware}. Let’s take a more in-depth look!

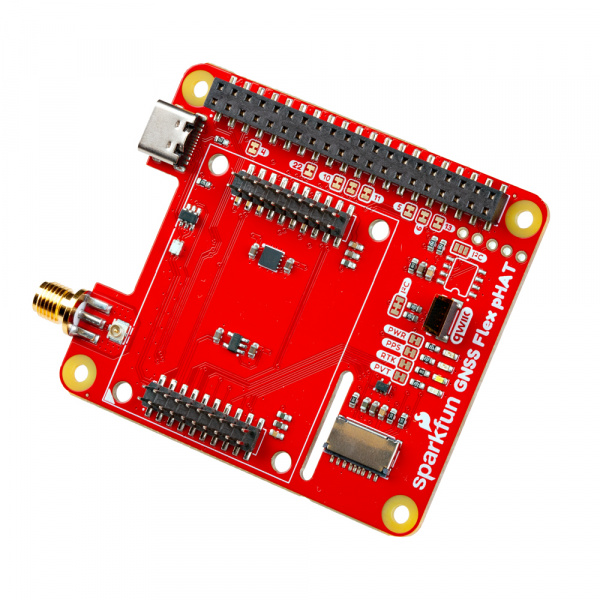

SparkFun GNSS Flex pHAT
GPS-28137
The SparkFun GNSS Flex pHAT is a Raspberry Pi pHAT that capabilities as a service board for our SparkPNT GNSS Flex modules. With pre-soldered headers, no soldering is required to stack the pHAT on the headers of a Raspberry Pi, NVIDIA Jetson Nano, Google Coral, or different single-board laptop with an analogous 40-pin header.

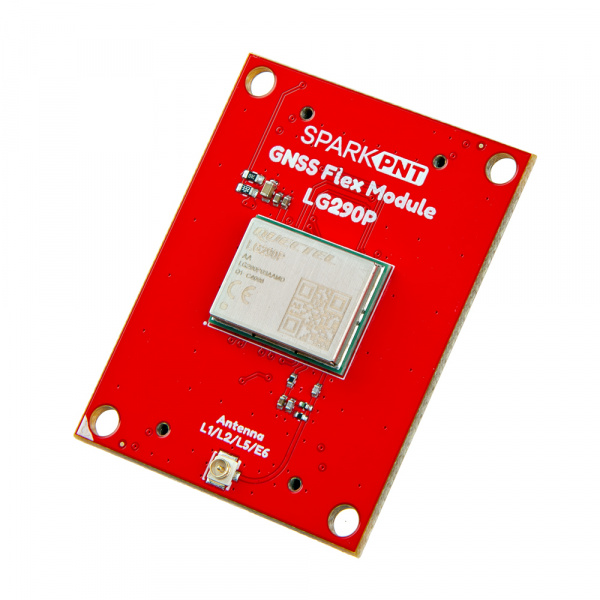

SparkPNT GNSS Flex Module – LG290P
GPS-28139
SparkPNT GNSS Flex Modules are plug-in boards that includes totally different high-precision GNSS receivers. They’re designed to be simply swapped for repairs and pin-compatible for upgrades. The mosaic-X5 and LG290P boards have two 2×10-pin, 2mm pitch feminine headers connecting to service boards. Utilizing a standardized pinout for the GNSS receiver, these pins escape the interfaces and occasion indicators.
The SparkFun mosaic-X5 GNSS Flex pHAT will get you the GNSS Flex pHAT with the mosaic-X5 Flex module so you may hit the bottom working along with your subsequent PNT mission. The pHAT is designed to interface with a Raspberry Pi or comparable single-board computer systems through a 40-pin header and acts as a service board for the GNSS Flex Module. The GNSS Flex system employs a modular design based mostly on two 2×10-pin, 2mm pitch headers, making certain pin compatibility throughout boards for simplified upgrades and repairs.
The mosaic-X5 is a complicated module with an inner internet server that may be utilized with any internet browser. On the GNSS Flex module, the online server is accessed by means of both the USB information pins from the usual GNSS Flex headers or the Ethernet PHY of the mosaic-X5, which is damaged out on a 3rd 2×10-pin, 2mm pitch feminine header.
In the meantime, the SparkFun LG290P GNSS Flex pHAT comes with the SparkPNT LG290P GNSS Flex Module. The GNSS Flex system employs a modular design based mostly on two 2×10-pin, 2mm pitch headers, making certain pin compatibility throughout boards for simplified upgrades and repairs.
The SparkPNT GNSS LG290P Flex module options the Quectel LG290P receiver. The LG290P module is a quad-band, multi-constellation, high-precision, RTK GNSS receiver. The module can concurrently obtain indicators from the L1, L2, L5, and L6/E6 frequency bands of the GPS, GLONASS, Galileo, BDS, QZSS, and NavIC GNSS constellations. As well as, the module helps SBAS augmentation methods (WASS, EGNOS, BDSBAS, MSAS, GAGAN, and SDCM), RTCM, and RTK corrections for precision navigation with a quick convergence time and dependable efficiency.
That is it for this week at SparkFun. As at all times, we won’t wait to see what you make! Shoot us a tweet @sparkfun, or tell us on Instagram, Fb or LinkedIn. Please be secure on the market, be sort to at least one one other! Blissful hacking!
