The double helix of DNA could also be the most typical construction on the earth. Stretched out absolutely, the DNA in a single human cell is about six-and-a-half ft lengthy. If the DNA from all of the cells in a single particular person had been lined up, finish to finish, it will attain 41 instances additional than the space between Earth and the Solar. Now take into account that there are billions of individuals, and numerous different animals, crops, and single-celled organisms on the planet. That’s an terrible lot of double helices!
There have to be one thing particular a couple of construction as pervasive as that of DNA. Researchers at Shinshu College in Japan suppose so, they usually have leveraged its distinctive form to create a greater fiber sensor design. Fiber sensors are surging in recognition on the earth of wearable electronics because of their gentle weight, flexibility, and luxury when worn on the physique. However these sensors have an issue — repeated motion causes them to turn out to be much less correct, and finally fail.
The fabrication course of for a fiber sensor (📷: Z. Chen et al.)
To deal with this downside, the analysis group developed a brand new kind of fiber sensor that mimics the double-helical construction of DNA. Conventional fiber sensors have electrodes hooked up at each ends, which are likely to weaken or break when positioned over joints like fingers or knees — areas that transfer regularly. In distinction, the brand new design locations each electrodes on the identical finish, considerably bettering sturdiness and reliability throughout movement.
The novel sensor consists of two coaxial fibers twisted right into a double helix. Every fiber has a conductive internal core made out of multi-walled carbon nanotubes and a robust insulating shell composed of thermoplastic polyurethane and titanium dioxide nanoparticles. This layered construction is created utilizing a way known as coaxial wet-spinning. After warmth therapy, the twisted fibers fuse right into a secure double-helix with built-in terminals at one finish.
With a diameter of lower than 1 mm, the sensor is slim sufficient to be woven into clothes. Checks present it could actually stretch to over 300% of its authentic size and endure greater than 1,000 stretching cycles with out breaking. These traits make it splendid for monitoring movement, corresponding to finger gestures, facial expressions, and even respiration patterns.
Knowledge collected from wearable units (📷: Z. Chen et al.)

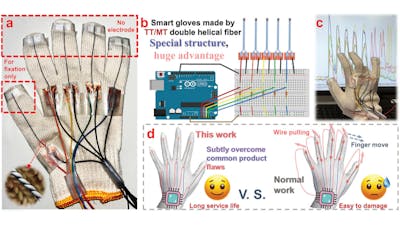

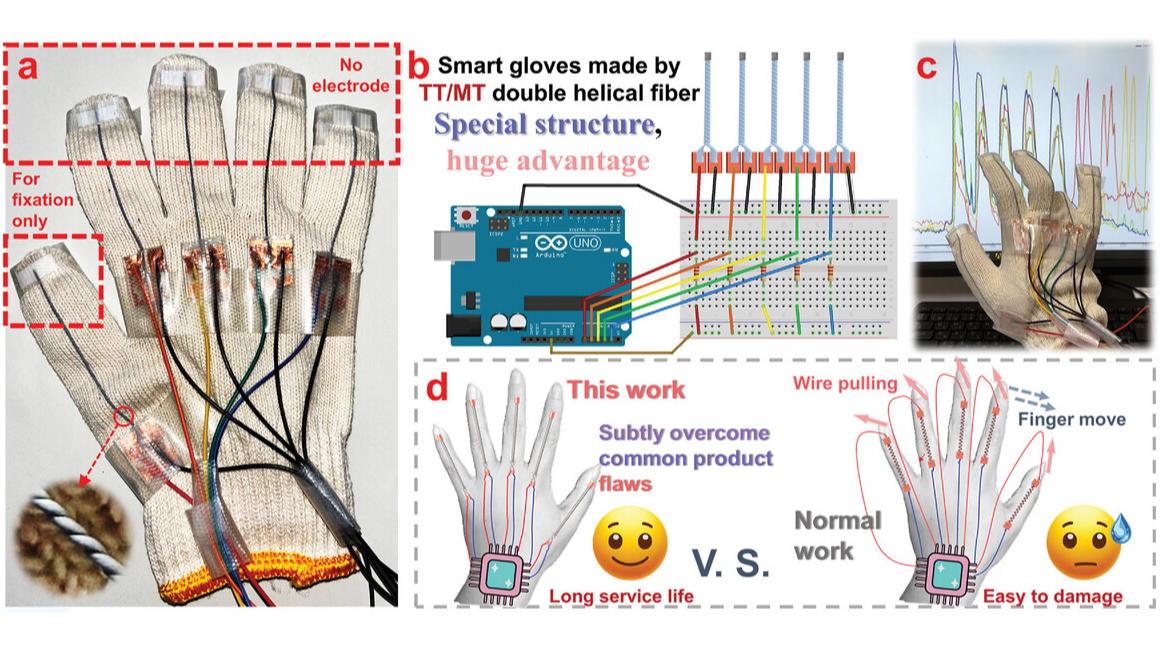

In a single demonstration, the group built-in the sensor into a sensible glove. This glove was hooked up to an Arduino UNO for information assortment. Utilizing a convolutional neural community for classification, the glove confirmed that it might acknowledge six frequent hand gestures with a formidable 98.8% accuracy. It might even detect the size of finger actions and use that info to transmit Morse code wirelessly, exhibiting potential for aiding folks with communication impairments sooner or later.
Past wearables, the double-helical sensor might additionally monitor fluid circulate, making it helpful for a broader set of purposes. Its capacity to simplify wiring and scale back mechanical failure opens up potentialities for real-time distant well being monitoring, sports activities coaching, and security techniques in excessive environments like mountaineering. The work might assist carry a couple of new era of clever, dependable, and cozy wearable units.
