A brand new technology of digital scopes delivers ultra-low noise, femtosecond jitter precision, and real-time bandwidth as much as 25 GHz—reshaping high-speed validation, AI information middle debug, and superior physics analysis.

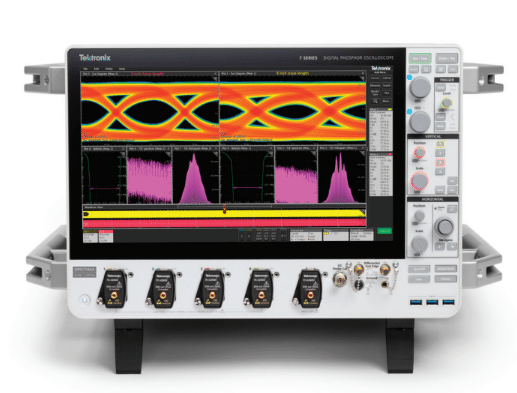

Devices are entering into new territory with the debut of a digital phosphor oscilloscope (DPO) 7 Sequence DPO sequence by Tektronix ,able to as much as 25 GHz analog bandwidth and 125 GS/s sampling on all 4 channels. Concentrating on the hardest frontiers in high-speed serial design, synthetic intelligence information middle improvement, and superior physics experiments, the system guarantees the bottom noise, highest efficient variety of bits (ENOB), and lowest jitter in its class.
Engineers engaged on sign integrity, reminiscence bus validation, or high-speed serial compliance testing are set to profit most. By combining quiet-channel acquisition with lively equalization to counter high-frequency sign losses, the platform delivers cleaner visibility into transient occasions and timing anomalies that historically problem typical scopes. The introduction of a ten Gb Ethernet LAN SFP+ port additional raises throughput, rushing up information switch for labs the place time and precision are equally important.
The important thing options are:
- Bandwidth choices: 8–25 GHz, all upgradeable
- Document size: as much as 2 Gpoints
- 10-bit ADC for prime sign constancy
- Helps duties from RF spectral evaluation to next-gen interconnect debug
- Precision timebase delivers 60 fs jitter efficiency
- Constructed for low-latency, error-free methods in AI clusters and quantum analysis
Along with uncooked efficiency, usability has been re-thought. The interface builds on the acquainted TekScope setting and runs on both a closed Linux OS or an optionally available Home windows 10 platform, each housed on detachable SSDs. A 15.6-inch HD capacitive touchscreen anchors the expertise, designed for intuitive workflows in advanced debug classes.
Past the core oscilloscope, the platform expands performance with optionally available options corresponding to a 100 MHz arbitrary/perform generator and compatibility with the P7700 and P7600 TriMode probe households. Connectivity spans USB 3.0, DisplayPort, HDMI, and auxiliary clocking and sync choices, catering to each stand-alone and tightly built-in take a look at setups. With its mix of bandwidth headroom, low-noise acquisition, and streamlined person expertise, the brand new DPO line positions itself as a reference software for the subsequent decade of electronics analysis and validation.
