Excessive-sensitivity torque sensors supply pressure suggestions for small-payload cobots

Newer force-torque sensors allow robots to maneuver with security, reliability, and precision. Supply: Pixabay, ATO Automation

We’ve all seen it on the manufacturing unit ground. A small collaborative robotic is tasked with assembling a fragile electronics module. The payload is barely a few kilograms. The components are gentle, fragile, and unforgiving. A connector bends if insertion pressure is off by a couple of tenths of a newton. A plastic latch snaps if torque spikes for even a couple of milliseconds.

That is precisely the place conventional pressure sensing begins to collapse.

For years, many small-payload cobots relied on motor-current estimation or low-resolution force-torque sensors mounted on the finish effector. That method works wonderful for tough duties.

It struggles badly when forces are refined, instructions change quick, or compliance issues greater than velocity. We’ve watched cobots hesitate throughout insertion, chatter throughout sharpening, or overreact to phantom collisions attributable to noisy alerts.

Excessive-sensitivity torque sensors change that equation.

By measuring torque straight on the joint or with ultra-fine decision on the wrist, these sensors can unlock actual pressure suggestions for cobots carrying as much as 5 kg (11 lb.). We’re speaking sensitivities right down to 0.05 N or 0.002 Nm, quick sufficient to catch micro-collisions earlier than they turn into macro issues.

For small-payload techniques, that’s not a luxurious. It’s the distinction between automation that appears good in demos and automation that runs three shifts a day.

In latest deployments, we’ve seen force-feedback cobots deal with electronics meeting—like inserting micro-connectors into smartphone PCBs—hand-guided educating for fast reprogramming, and cable routing via tight electrical panels with a degree of finesse that used to require costly industrial arms or customized compliance {hardware}.

The widespread thread is best torque sensing. No more sensors. Higher ones.

Let’s take a look at how high-sensitivity torque sensors for cobots really work, the place they ship essentially the most worth, and what’s taking place proper now available in the market. We’ll keep sensible. No generic robotics historical past. No advertising fluff. Simply what issues while you’re selecting torque sensing for small-payload collaborative robots.

What makes torque sensors ‘high-sensitivity’ in cobots?

Not all torque sensors deserve the high-sensitivity label, particularly in cobot functions. In small-payload techniques, the distinction between usable information and noise is razor-thin.

At a technical degree, high-sensitivity torque sensors ship decision that’s sometimes three to 5 instances higher than normal industrial sensors. For cobots beneath 5 kg payload, which means reliably detecting forces under 0.1 N and torque modifications under a couple of thousandths of a newton-meter.

We’ve seen three core design decisions drive this efficiency.

First is the sensing precept. Pressure gauge-based torque sensors nonetheless dominate cobot joints as a result of they provide glorious linearity and mature sign conditioning. The most effective designs use optimized flexures with hourglass or spoke geometries. These focus pressure the place gauges are mounted whereas conserving the construction stiff in undesirable instructions. Optical torque sensors exist, however packaging and value usually restrict their use in small joints.

Second is mechanical integration. Excessive-sensitivity designs are low-profile and infrequently ring-shaped, permitting direct integration into harmonic or pressure wave gearboxes. This minimizes compliance stack-up. Much less mechanical play means cleaner alerts. It additionally means higher repeatability throughout quick path modifications.

Third is electronics. Sampling charges of 2000 Hz or greater at the moment are widespread in cobot-focused torque sensors. That issues. Small-payload cobots transfer quick relative to their mass. In case your sensor lags, your management loop will at all times really feel smooth or unstable. Temperature drift can also be tightly managed, usually conserving accuracy loss beneath 2% throughout the working vary.

After we discuss small-payload cobot torque sensing, sensitivity isn’t only a spec on a datasheet. It’s the mixed consequence of mechanical design, sign processing, and the way shut the sensor sits to the precise joint torque path.

Get that flawed, and no quantity of software program tuning will prevent.

Design decisions have an effect on pressure torque sensitivity. Supply: Pixabay, ATO Automation

How can high-sensitivity torque sensors enhance cobot security?

Cobot security is the place high-sensitivity torque sensing earns its preserve.

Most collaborative robots depend on pressure and torque limits to satisfy security requirements. The problem with small-payload cobots is that absolute forces are low to start with. A collision may solely generate a fraction of a newton earlier than harm happens. In case your sensor decision is coarse, you gained’t see it till it’s too late.

Excessive-sensitivity torque sensors allow true joint-level pressure monitoring. As an alternative of inferring collisions from motor present, the controller sees torque spikes straight. That improves each detection velocity and accuracy.

In actual deployments, we’ve seen this cut back false positives dramatically. A cobot sharpening a plastic housing for shopper electronics can distinguish between anticipated contact pressure and an sudden obstruction—like a employee’s hand close by. The distinction may be 0.1 N. With high-resolution sensing, the robotic reacts easily as an alternative of slamming to a halt.

One other profit is compliant movement. Cobot pressure management relies on clear suggestions. Excessive-sensitivity torque sensors permit impedance and admittance management loops to run tighter with out oscillation. That’s vital for duties like hand-guiding, the place the robotic ought to really feel gentle and responsive slightly than stiff or laggy, reminiscent of throughout intuitive path programming by store ground technicians.

Joint-level sensing additionally scales higher than relying solely on a 6-axis pressure torque sensor on the wrist. Every joint contributes its personal torque information, giving the controller a richer image of interplay forces. For collaborative robotic sensors, that distributed consciousness interprets into safer, extra predictable conduct.

Security requirements haven’t modified in a single day. However the sensible security envelope has expanded as a result of the robotic understands its world with finer granularity.

A number of pressure torque sensors are wanted for cobot functions. Supply: Pixabay, ATO Automation

Drive suggestions necessities for small-payload cobots

Drive suggestions in cobots isn’t magic. It’s closed-loop management achieved proper.

On the core is a quick management loop the place torque measurements feed straight into movement instructions. In pressure suggestions cobots, this loop sometimes runs at 500 to 2,000 Hz. Excessive-sensitivity torque sensors make that loop significant at low pressure ranges.

We’ve discovered joint-level torque sensing particularly precious for small payloads. When sensors sit in every joint, the controller can compensate for gravity, friction, and exterior contact independently. That issues when the finish effector weighs lower than the gearbox it’s connected to.

Finish-effector force-torque sensors nonetheless have their place. They’re nice for duties requiring exact Cartesian pressure management. However for small-payload cobot torque sensing, joint sensors usually ship higher signal-to-noise ratios and quicker response.

Collision detection is one other space the place pressure suggestions shines. With high-resolution torque information, the robotic can detect contact path and magnitude virtually immediately. As an alternative of stopping abruptly, it may again off compliantly—as seen in pick-and-place operations with fragile glass parts. That’s not simply safer; it’s gentler on tooling and components.

We’ve additionally seen pressure suggestions enhance repeatability. When insertion forces are managed as an alternative of place alone, variation in components or fixtures issues much less. The robotic adapts in actual time, for instance, throughout battery cell insertion in wearable system meeting.

In brief, high-sensitivity torque sensors flip pressure management from a checkbox function right into a day by day productiveness software.

Sensors may be within the robotic arms or finish effectors. Supply: Pixabay, ATO Automation

Key functions in precision duties

Small-payload cobots dwell on the earth of precision.

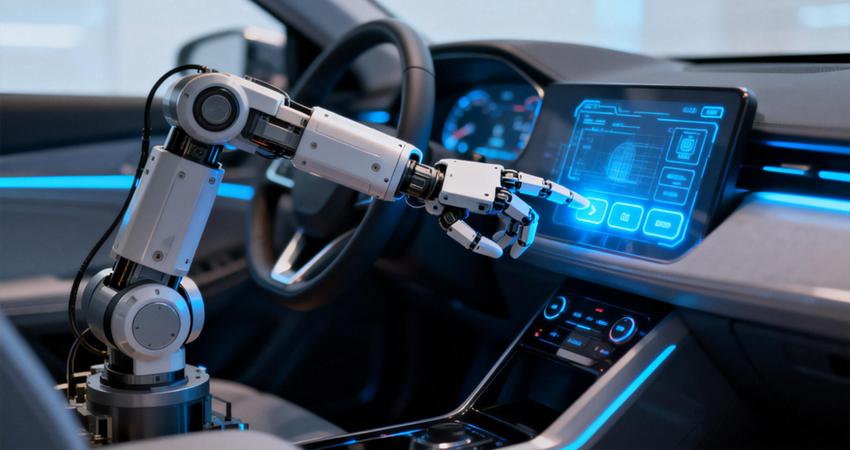

One widespread utility is end-of-line testing for small parts like buttons, switches, or connectors on automotive management panels. The required actuation pressure may be beneath 1 newton.

Excessive-sensitivity torque sensors permit the cobot to press till a pressure threshold is reached, not only a place. That improves check consistency and reduces scrap.

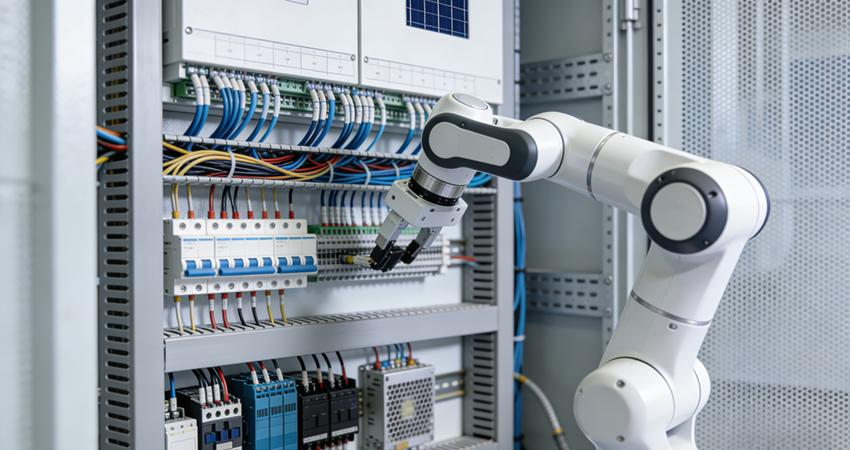

Cable routing inside electrical cupboards for photo voltaic inverters is one other standout. Anybody who’s tried to automate this is aware of how unforgiving it’s. With exact torque measurement robotics, the cobot feels resistance modifications as cables bend or snag round connectors. It adjusts path and velocity dynamically.

We’ve additionally seen success in electronics sharpening and deburring of aluminum smartphone instances. These duties demand fixed contact pressure over advanced surfaces. Excessive-sensitivity torque sensors preserve pressure steady at the same time as geometry modifications.

Hand-guided educating is the place operators discover the distinction instantly. With good torque sensing, the robotic feels gentle and intuitive throughout fixture alignment setups. Operators don’t struggle inertia or friction. They information. The result’s quicker setup and higher acceptance on the store ground.

Medical system meeting—like catheter tip forming—and minimally invasive element insertion into diagnostic instruments are rising areas as properly. Right here, pressure limits are strict and documentation issues. Clear torque information helps with each management and traceability, guaranteeing compliance in cleanroom environments.

Throughout these use instances, the widespread thread is refined pressure interplay. That’s precisely the place high-sensitivity torque sensors excel.

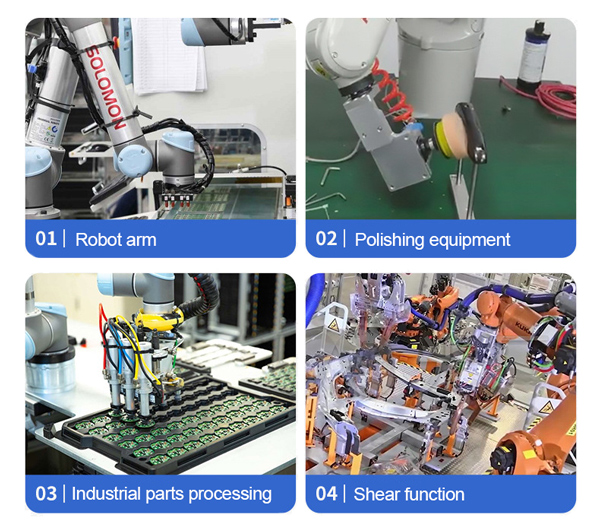

Examples of commercial pressure torque sensor functions. Supply: ATO Automation

High sensors and integrations available on the market

A number of sensor suppliers are shaping this house proper now.

One of the talked-about choices is the SenseONE T5 by Bota Methods. Designed for cobots as much as 5 kg payload, it delivers pressure sensitivity right down to 0.05 N and torque decision round 0.002 Nm. It’s compact, dustproof, and integrates cleanly by way of EtherCAT and ROS.

We’ve seen it deployed for precision meeting of wearable sensors the place conventional wrist sensors merely couldn’t resolve low forces reliably.

FUTEK affords customized low-profile joint torque sensors tailor-made for harmonic and strain-wave gears. These are widespread in OEM cobot joints the place house is tight. The corporate’s pressure gauge designs concentrate on minimizing crosstalk and enhancing thermal stability, ultimate for twenty-four/7 pharmaceutical packaging traces.

TE Connectivity has ring-shaped torque sensors designed with security in thoughts. Some fashions help ISO 13849 PL e architectures, making them engaging for collaborative functions like food-grade half dealing with the place security certification is entrance and middle.

ATO gives high-precision pressure gauge torque sensors appropriate for dynamic and static measurements in cobot setups. These rotary and response torque sensors supply quick frequency response, dependable long-life efficiency, and capacities from small-scale joints to greater masses, making them versatile for precision duties like viscometer manufacturing or electrical torque wrench calibration in automated meeting traces.

Many of those sensors pair naturally with frameless BLDC (brushless DC) torque motors. Excessive torque density and low cogging complement delicate torque measurement, particularly in direct-drive or quasi-direct-drive joints for lab automation.

Price varies broadly primarily based on customization and quantity, however integration effort usually issues greater than sensor worth alone.

Torque sensor comparability for small-payload cobots

Integration challenges and sensible options

Even the most effective sensor can fail if integration is sloppy.

One problem we see usually is mechanical alignment. Torque sensors should sit straight within the load path. Any aspect masses or misalignment introduce errors and cut back sensitivity. Utilizing purpose-built adapters or built-in housings helps, however many fashionable cobots keep away from adapters fully, reminiscent of in seamless retrofit kits for legacy UR3 arms.

Sign noise is one other difficulty. Excessive sensitivity means excessive susceptibility to electromagnetic interference (EMI). Good grounding, shielded cables, and clear energy matter. So does correct filtering with out including latency, essential in EMI-heavy welding cells.

On the software program aspect, plug-and-play help has improved. Many collaborative robotic sensors now ship with URCaps, ROS drivers, or TwinCAT libraries. That shortens commissioning time considerably for duties like vision-guided bin selecting.

Pairing torque sensors with BLDC motors additionally requires consideration. Motor ripple can bleed into torque alerts if not dealt with appropriately. We’ve had success synchronizing motor management loops with sensor sampling to scale back crosstalk in multi-joint synchronized movement.

The excellent news is that almost all of those challenges are solved issues if addressed early. The dangerous information is that ignoring them results in disappointing efficiency, irrespective of how good the sensor seems on paper.

Future traits and real-world case research

Wanting forward, torque sensing is getting smarter.

We’re seeing early deployments of AI-enhanced pressure suggestions, the place machine studying fashions filter noise and predict contact intent. That is particularly promising for duties with variable components or smooth supplies, like adaptive sanding in customized furnishings manufacturing.

There’s additionally rising curiosity in extending these sensors into humanoid and cell manipulator platforms. The teachings discovered from joint torque sensors in cobots translate properly to arms that function in human environments, reminiscent of warehouse order-fulfillment robots.

In electronics manufacturing, one case research concerned changing current-based pressure estimation with high-sensitivity torque sensors throughout a fleet of small cobots for PCB connector insertion. The end result was a measurable discount partly harm from 2.3% to 0.4% and quicker cycle instances as a result of conservative pressure limits may very well be relaxed safely.

Medical meeting traces report comparable good points in stent packaging automation. When pressure is measured precisely, processes turn into each safer and quicker—chopping defects by 35% whereas boosting throughput. That’s a uncommon win-win.

The pattern is evident. As cobots get smaller and duties get finer, torque sensing isn’t elective. It’s basic.

Select the appropriate torque sensor in your cobot

If you happen to’re working with small-payload cobots, torque sensing deserves severe consideration.

Excessive-sensitivity torque sensors unlock pressure suggestions that really works at low forces. They’ll enhance security, improve compliance, and develop the vary of duties cobots can deal with reliably—from microelectronics to medical units.

The secret’s matching sensor sensitivity to payload and utility. Over-specifying bandwidth or vary provides price with out profit. Underneath-specifying decision limits all the things else.

Have a look at integration first. Mechanical match, software program help, and management loop compatibility matter as a lot as uncooked specs. The SenseONE T5 exhibits how far plug-and-play sensors has come, whereas customized options from suppliers like FUTEK nonetheless make sense for OEM designs.

We’ve seen firsthand how small-payload cobot torque sensing transforms actual deployments. Not in flashy demos, however in quieter, extra steady manufacturing traces that simply work.
