ESP-ROLL Is a Sphero-Like DIY Robotic

Again in 2011, Orbotix launched their iconic Sphero robotic. It was a very distinctive product, like a motorized hamster ball able to rolling round in line with its programming and with some fundamental sensors. Ultimately, Orbotix took on Sphero as its firm identify and the Boulder, Colorado-based workforce nonetheless makes modern robots — together with the Mini, which is analogous to the unique Sphero. However constructing one thing is commonly extra enjoyable than shopping for it and if you happen to just like the Sphero idea, you’ll need to take a look at Max Creativeness’s DIY ESP-ROLL.

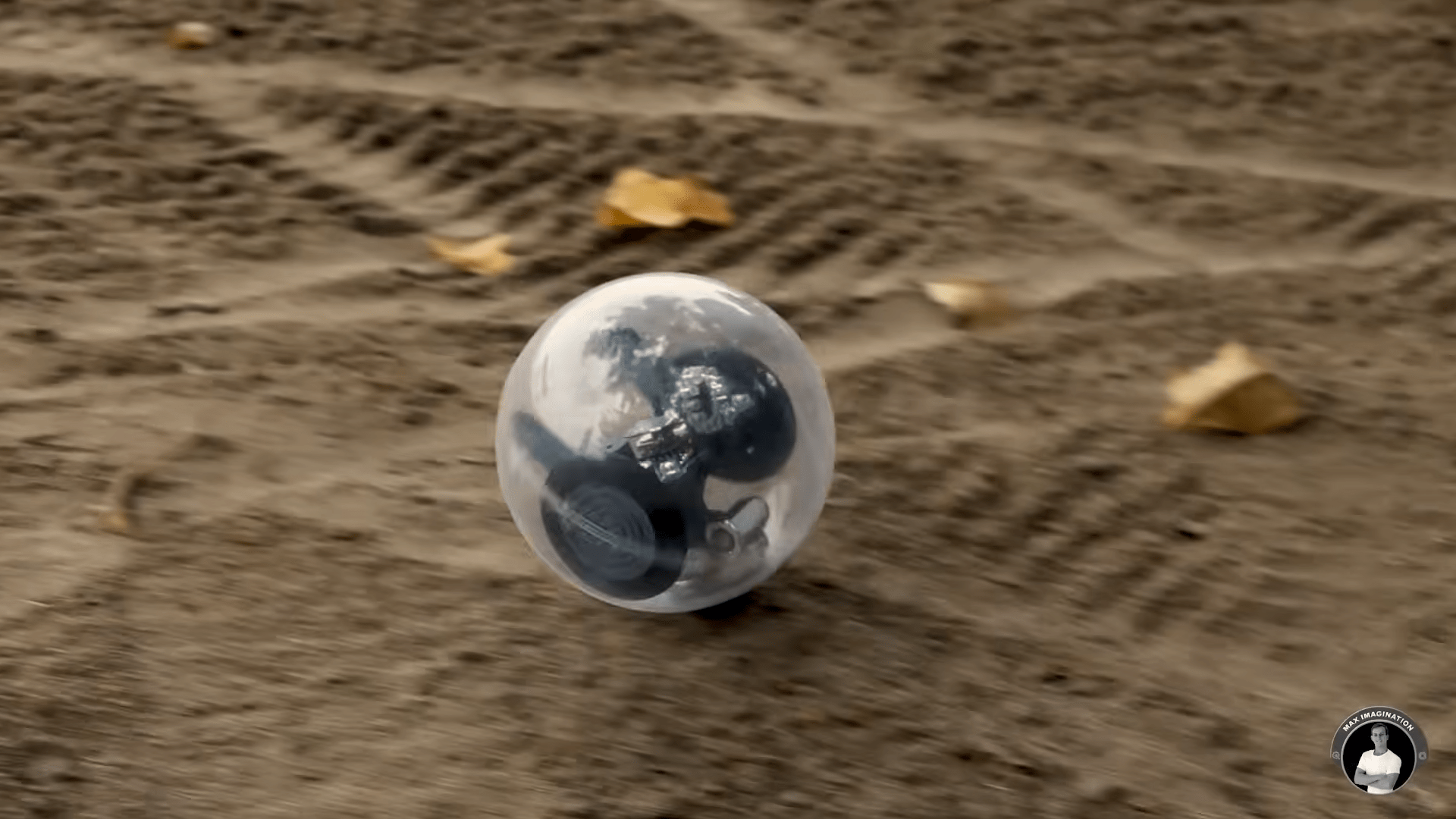

The ESP-ROLL, just like the Sphero, is basically a self-balancing robotic inside a spherical shell that acts as a giant wheel. Every little thing inside stays upright, whereas motors rotate the spherical shell in no matter path is important to realize the specified motion. On this case, the ESP-ROLL’s outer shell is clear plastic and that made it potential for Max so as to add a digital camera to the electronics inside. There’s even a tiny LED “ring mild” in there to supply illumination for the digital camera.

Because the identify suggests, ESP-ROLL is designed round an ESP32 growth board. Particularly, that’s the Seeed Studio XIAO ESP32-S3 Sense, which is a really compact growth board good for this job. That goes on a customized PCB that additionally hosts the opposite elements, protecting every thing tidy and safe.

These different elements embody two 400 RPM micro geared DC motors, a DRV8833 twin H-bridge motor driver IC, battery and energy administration ICs, a lithium battery, and the digital camera module that comes with the XIAO ESP32-S3 Sense.

In fact, probably the most fascinating factor in regards to the ESP-ROLL is that spherical enclosure and the mechanical components that make rolling round potential. The plastic sphere is definitely a reasonable decoration ball with a diameter of 100mm. These include a tab on high for attaching a string and that tab will get shaved off throughout the construct course of. The interior construction, designed in Autodesk Fusion 360, helps the elements and has two wheels that rotate the outer shell. Weights assist to maintain that construction upright.

For the firmware, Max turned to the unbelievable ESP32-CAM_MJPEG2SD created by person s60sc. That’s extraordinarily versatile and presents a variety of options, with a giant emphasis on the digital camera. It could stream video in real-time or seize recordings, and may accomplish that primarily based on movement detection. For autos geared up with cameras, reminiscent of ESP-ROLL, it even permits for direct distant management of the automobile’s motors over WiFi.
