Earbuds do much more than simply play music nowadays. They’ve picked up so many new capabilities that a wholly new class of digital units often known as earables has been created to explain them. Resulting from their shut proximity to the physique, they’re particularly promising for functions in well being monitoring. And since so many individuals now put on earbuds a lot of the day, this monitoring is each steady and clear.
There’s a draw back to utilizing this platform, nevertheless. To be acceptable to customers, earables have to be very, very small. Meaning, in fact, that the entire {hardware} supporting the system’s many capabilities should even be packed into a particularly tiny house. Many engineering challenges come up when designing and producing units of this kind. The experience and prices required to unravel these issues drastically limits who can get in on the sport. As such, there are solely a small variety of succesful earables available on the market in the present day.
The system structure (📷: T. Röddiger et al.)
A gaggle led by researchers on the Karlsruhe Institute of Expertise in Germany is working to make the boundaries to entry decrease on this space. We beforehand reported on their efforts to develop an open supply earphone platform referred to as OpenEarable that simplifies creating {hardware} able to physiological ear sensing. Now they’ve prolonged that platform with OpenEarable 2.0, which packs in much more {hardware}. This up to date model of the system can be utilized to trace greater than 30 metrics which can be helpful in well being monitoring.

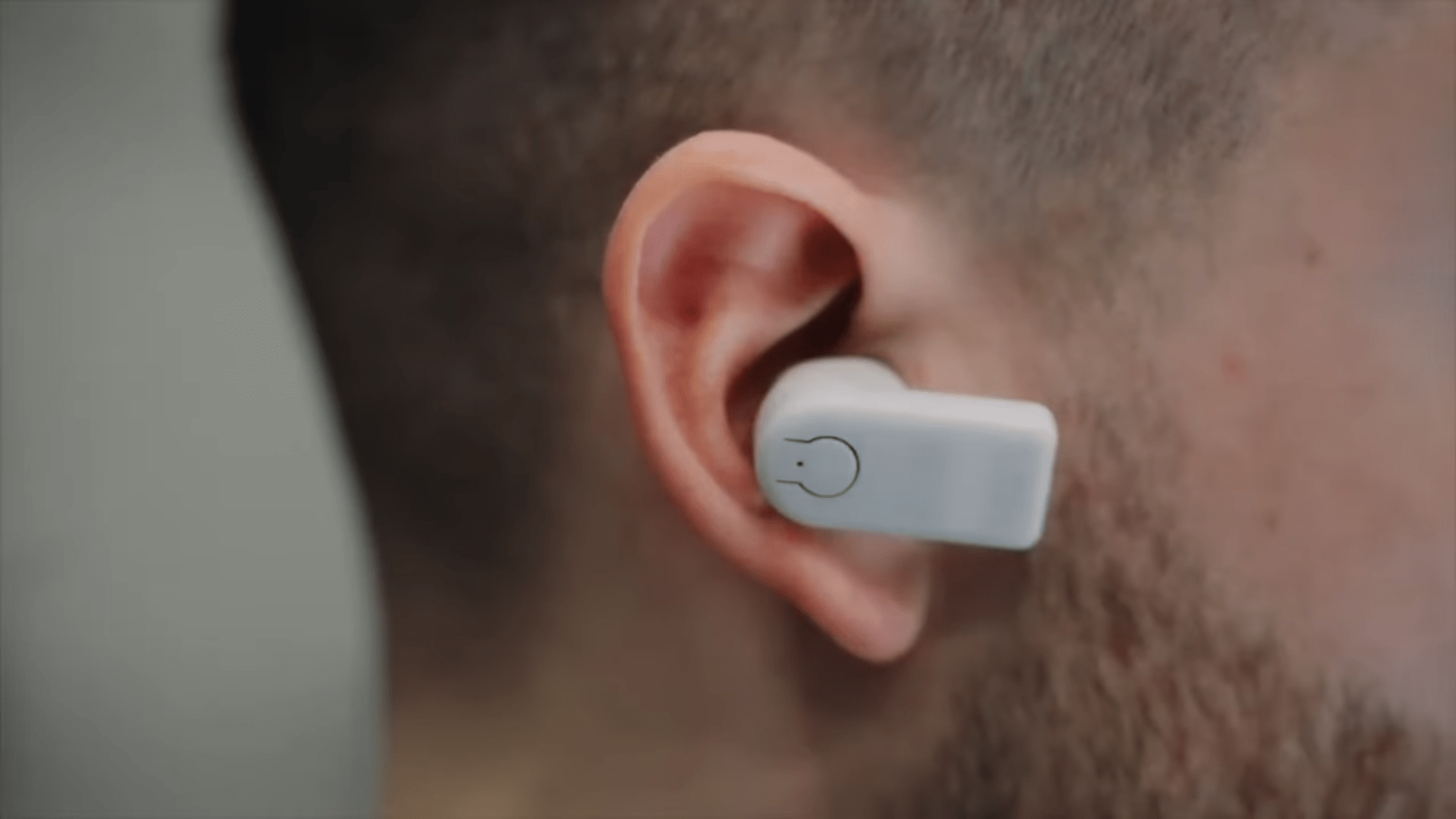

OpenEarable 2.0 is designed to appear and feel like a typical pair of Bluetooth earbuds, however beneath the hood it’s full of sensors. The system integrates two ultrasound-capable microphones (one dealing with inward towards the ear canal and one dealing with outward), a 3-axis accelerometer that doubles as a bone-conduction microphone, a 9-axis inertial measurement unit for detecting head actions, a pulse oximeter, optical temperature sensor, and an ear canal strain sensor. All of that is managed by an onboard microcontroller and supported by a chargeable battery that may run for as much as 5 hours with all sensors energetic.
Regardless of this complexity, the platform was designed from the bottom as much as be open, extensible, and inexpensive. Your complete {hardware} design — right down to the printed circuit boards and 3D-printable case — is open supply and constructed utilizing freely out there design instruments. Off-the-shelf elements are used wherever attainable, and no specialised manufacturing tools is required.
The {hardware} (📷: T. Röddiger et al.)
The big selection of sensing choices allows many functions. Within the space of well being monitoring, the system can monitor coronary heart charge, blood oxygen ranges, physique temperature, and even delicate actions of the ear canal that will correspond to chewing, speaking, or facial expressions. For exercise monitoring, it may document head actions and general physique movement. Past well being and health, the mix of sensors may allow novel types of human-computer interplay, biometric authentication, and even cognitive or emotional state monitoring.
By combining high-end sensing capabilities with open supply accessibility, OpenEarable 2.0 presents a versatile basis for researchers and builders exploring the way forward for wearable computing. It makes it attainable for anybody with curiosity and a little bit of expertise with electronics to affix in shaping what earables can do subsequent.
