You in all probability heard in regards to the notorious $600 hammer that the Pentagon supposedly paid for again within the ‘80s. That was a fantasy based mostly on a misunderstanding, however giant establishments — together with hospital and analysis labs — typically pay much more than you may count on for his or her tools. Liquid handlers, for instance, can value a number of tens of 1000’s of {dollars}. However Triggy was capable of reproduce that performance with his pipetting machine that prices only a couple hundred {dollars} to construct.
The excessive prices of laboratory tools aren’t only a results of bureaucratic waste and institutional value gouging. That tools wants to satisfy rules, carry certifications, keep calibration, and be serviceable, which all provides up. However when these elements aren’t so essential, it’s doable to do the identical job at a a lot, a lot decrease value.
That’s what Triggy did right here. He constructed a 96-channel digital pipette machine that may aspirate after which dispense exact volumes of liquid. That’s a helpful machine to have when you’re doing checks throughout numerous samples, which is a quite common job in 1000’s of labs world wide.

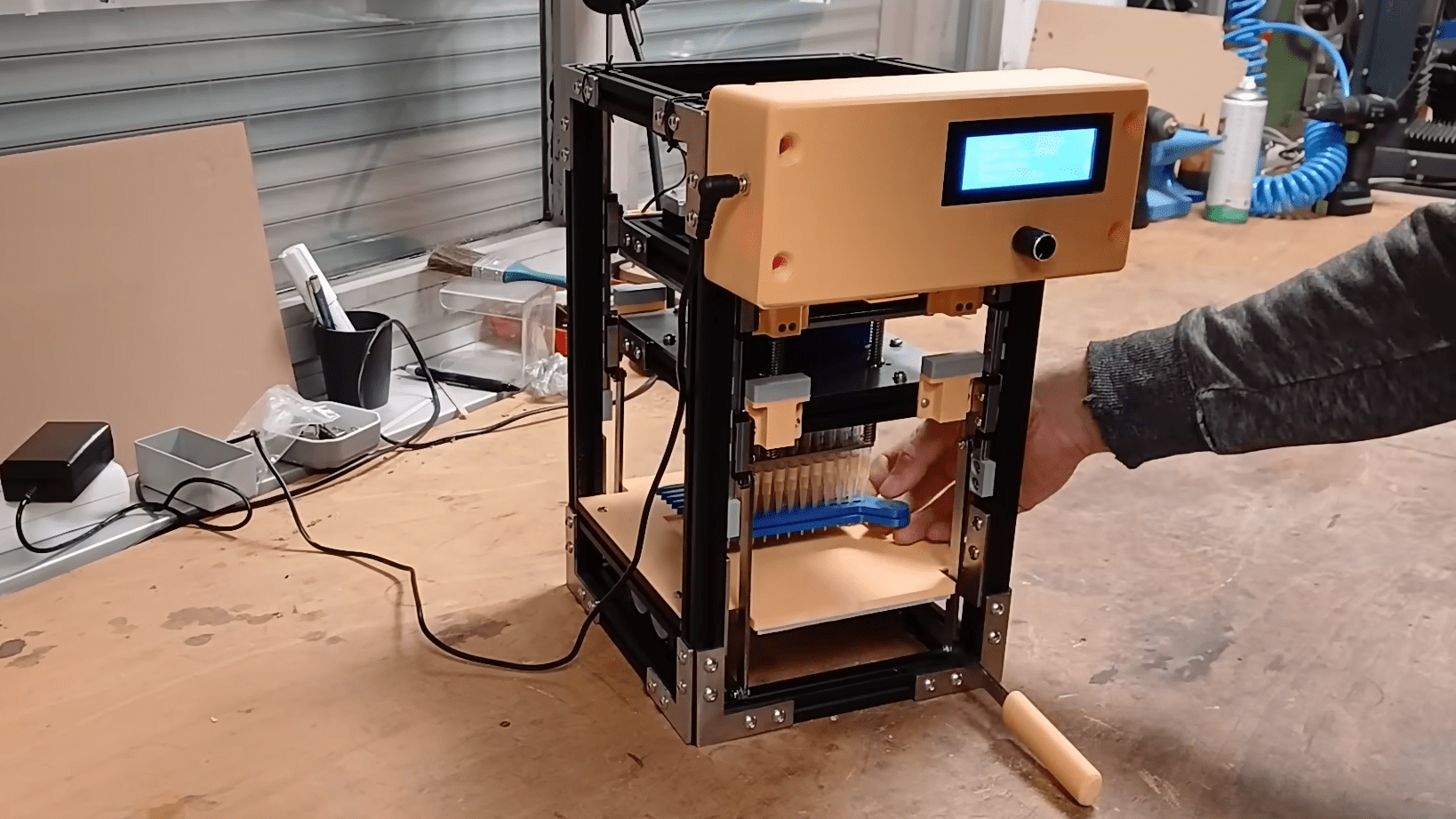

Triggy’s machine works through the use of 4 stepper motors to maneuver a plate that pushes or pulls 96 syringe plungers concurrently. The syringes mount onto a grid plate that retains them organized in orderly and constant rows. A operated by hand linkage system lets the consumer carry the syringes out of a tray shortly for environment friendly workflows.
That is an open supply challenge, however it isn’t but absolutely documented and Triggy doesn’t present any particulars within the video in regards to the digital {hardware}. Nevertheless, the machine seems to make use of an Arduino UNO Rev3 board and a CNC defend to regulate the steppers. The consumer can set parameters and activate the capabilities utilizing a easy management knob paired with an LCD display.
Skilled labs will proceed to make use of skilled machines for this sort of work. However Triggy’s design is ideal for citizen scientists and anybody else that should do plenty of pipetting on a price range.
