Researchers develop a Switched-Capacitor based mostly, nine-level inverter for environment friendly solar energy conversion with 96.5 % effectivity.
Researchers from Andhra College and Vignan’s Institute of Info Expertise have developed a switched-capacitor-based, nine-level inverter that operates from a single DC supply and delivers as much as 96.5% effectivity.
The inverter removes the necessity for separate DC-DC levels, magnetic elements, and lively voltage balancing, doubtlessly lowering system complexity. It may be scaled to increased energy or three-phase configurations. It’s designed for photovoltaic and different low-voltage DC purposes.

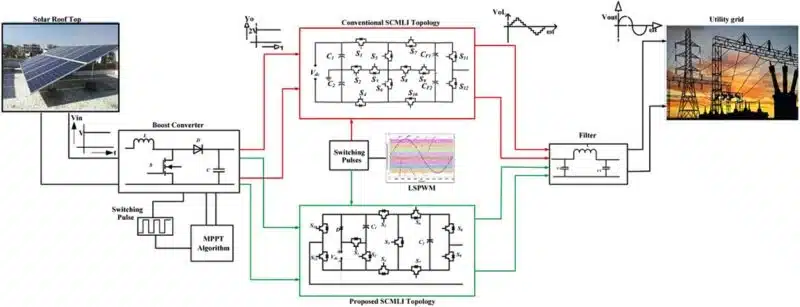

It makes use of two capacitors, 9 semiconductor switches, and one diode to generate 9 voltage ranges. The configuration alternates capacitor connections between sequence and parallel modes to provide output voltages from -4 to +4 instances the enter, in discrete steps.
The place the capacitor voltages stay balanced by the switching sequence with out further management circuits.
Degree-shifted Pulse Width Modulation is used to generate the multi-level waveform. The modulation index determines what number of voltage ranges are produced, permitting adaptation to various working circumstances whereas limiting voltage sign distortion.
The design reduces whole standing voltage throughout units to 21 VDC, equal to five.25 per unit of the output voltage. This lowers thermal and electrical stress on the elements. Switches are grouped by voltage scores to optimise distribution of stress.
The researchers recommend applicability in rooftop photo voltaic, battery techniques, and EV charging the place compact, high-efficiency inverters are required for grid-compatible AC era from low-voltage DC sources.
Thermal modelling in MATLAB confirmed peak losses above 5 kHz, although effectivity remained secure throughout resistive, inductive, and combined masses.
