There may be maybe nothing extra charming than area exploration within the minds of builders, tinkerers, and {hardware} hackers. The Mars rover missions and the current Starship check flights are amongst humanity’s best technical achievements to this point. However none of those occasions has fairly the attract of the Apollo Moon missions. Not solely did these missions put the primary folks on the Moon, however they did it utilizing primitive {hardware} that’s much less highly effective than a calculator is in the present day.
Within the hierarchy of awesomeness, the huge Saturn V rockets could have been king. However not far behind is the Lunar Module. In any case, with out these automobiles, folks would by no means have set foot on the Moon. And nobody might ever overlook the well-known phrases uttered on the primary touchdown of a Lunar Module: “The Eagle has landed.”
The rear of the machine and the connector (📷: Mike Stewart)

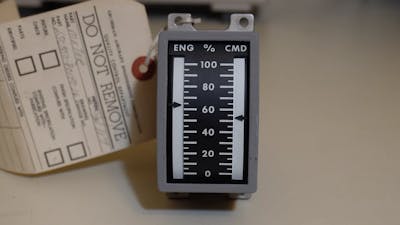

For these causes, the Lunar Module thrust meter deep dive lately finished by Mike Stewart is one you don’t wish to miss. The actual meter that Stewart has was by no means on an area mission, but it surely was ready for precisely that objective in 1969, and it’s equivalent to the meters that made their method right into a Lunar Module.
Stewart’s examination reveals a captivating, and surprisingly advanced piece of engineering designed for a single essential part of the mission: the descent to the lunar floor. This machine is not a typical analog gauge. It’s a “servometric indicator,” using inside suggestions loops and servos to supply extremely quick, correct readings. This design selection led to a novel quirk: if the meter misplaced energy, the needles would immediately freeze of their final place fairly than falling again to zero.
That is the glow Apollo astronauts noticed on descent to the Moon (📷: Mike Stewart)
The meter has a dual-needle show through which the left needle indicated precise thrust based mostly on engine stress, whereas the proper needle confirmed the commanded throttle share. The wiring for the proper needle was notoriously advanced as a result of throttle instructions might come from the astronaut manually or from the Apollo Steerage Laptop robotically. To deal with the engine’s lack of ability to throttle beneath 10%, the meter used inside bias pins to precisely interpret indicators relying on which mode was energetic.
To carry this machine again to life, Stewart created customized connectors to keep away from damaging the classic {hardware}. When powered up with 28 volts, even after sitting for over 50 years, the meter was discovered to nonetheless be completely calibrated to unique NASA specs. Lastly, Stewart illuminated the meter’s eerie, high-voltage electroluminescent backlighting, providing a glimpse of precisely what Apollo crews noticed throughout their descent to the Moon. Take a look at the video beneath to see it for your self.
