Whether or not it’s for academic functions, future job prospects, or simply for enjoyable, lots of people are very excited by studying extra about robotics. It isn’t an particularly straightforward discipline to leap into, nevertheless. The {hardware} is commonly very costly, and experience in a wide selection of subjects starting from mechanical engineering and laptop science to electrical engineering is important to get very far. All of those difficulties go away many individuals sitting on the sidelines as a result of they have no idea the place to even begin.
YouTuber LeMaster Tech has simply launched a challenge that could possibly be very invaluable to people discovering themselves on this state of affairs. He has walked by means of the method of designing and constructing an automatic stock robotic that’s able to finding objects and performing pick-and-place operations. It’s far too easy of a system for real-world use, however it’s excellent for somebody trying to construct their data base within the space.
The Raspberry Pis have been wired collectively for communication (📷: LeMaster Tech)
On the planet of robotics, the elements used within the challenge might not be particularly costly, however they don’t seem to be low cost for the informal hobbyist both. The stock system makes use of an Elephant Robotics myCobot 280 robotic arm and an Elephant Robotics myAGV cell chassis, which is able to set you again about $800 and $950, respectively. However if you’re decided to leap into the sector, elements reminiscent of these will serve you effectively lengthy after your stock robotic is completed.

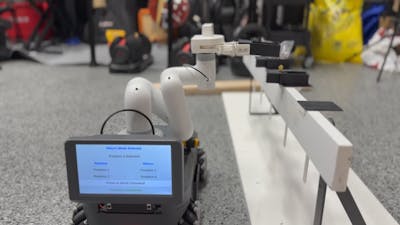

LeMaster Tech’s plan was to construct a small shelf containing quite a lot of objects, then use the robotic to autonomously drive to a user-selected location, decide up the merchandise, then drive it again to its beginning place. Towards that objective, the myCobot arm was mounted on prime of the myAGV. A proximity sensor was additionally mounted to the robotic, which permits it to find out the place objects are situated on the shelf through 3D-printed elements that cling beneath every one.
Each the arm and the chassis are powered by their very own Raspberry Pi single-board laptop. LeMaster Tech programmed every with Python to deal with capabilities like driving, finding objects, choosing objects up, and placing them again down. GPIO pins on the Raspberry Pis have been used for communication between the elements, which allowed them to behave in sequence — for instance, this informed the arm to remain nonetheless till the robotic had pushed to the right vacation spot.
A easy graphical interface to the system was developed to be used with a touchscreen show. This enables the person to decide on whether or not the stock robotic ought to decide up or return an merchandise, and the situation on the shelf that’s concerned within the motion.
After beginning with a fundamental robotic like this, one may use the identical {hardware} platform so as to add in additional superior applied sciences, like synthetic intelligence, to make the system extra highly effective and nearer to one thing that could possibly be utilized in real-world purposes. In case you are engaged on one thing like that, remember to tell us all about it!
