Conventional manufacturing has lengthy dictated the boundaries of automotive design, favoring symmetry, uniformity, and production-friendly shapes that may very well be fashioned by conventional manufacturing tools. Additive manufacturing (AM), nonetheless, modifications what is feasible. As a substitute of being restricted by typical tooling, engineers can use AM to design elements with sophisticated shapes and options. A course of that when took weeks in prototyping can transfer extra shortly to manufacturing.
In the present day, automakers are utilizing AM in 4 most important methods:
- Increasing design freedom
- Accelerating product growth
- Creating light-weight, high-performance elements
- Enabling digital stock and decentralized manufacturing
And it’s already beginning to form the longer term. BMW is about to supply over 1,000,000 3D-printed elements, and Ford is integrating AM into its workflows. The automotive {industry} is evolving, and it’s occurring one layer at a time.
Quick Prototyping & Sensible Improvement
Velocity is nearly the whole lot in the case of automotive innovation. AM accelerates the design-validation loop by letting engineers shortly iterate, print, and check elements with out ready on conventional tooling. As quickly as an element finishes printing, they’ll have it in hand and able to check.
Ford has invested closely in AM, constructing a brand new 3D printing middle to help the manufacturing of engine elements and ergonomic instruments. These purposeful, real-world elements enhance employee security and velocity meeting. Fast prototyping with AM lets engineers confirm match, kind, and performance early, reducing growth timelines and lowering tooling prices. Ford’s staff may even request or suggest new elements when wanted.
Whether or not refining air duct geometries, creating housing for electronics, or validating bracket tolerances, engineering groups use AM to maneuver from computer-aided design (CAD) to idea a lot quicker.
Design Freedom
AM helps automotive engineers keep away from the constraints of conventional machining. Not like subtractive processes (i.e., eradicating supplies from stable blocks), which regularly require uniform geometries for manufacturability, AM helps intricate lattice constructions, inner channels, and complicated natural shapes as they’re constructed up by layers.
This design freedom results in lighter and smarter elements. Engineers can tailor geometry to realize particular efficiency targets, equivalent to strength-to-weight optimization or built-in thermal administration, with out being restricted by device entry or reducing angles. Engineers can simply implement and adapt design modifications, even late within the growth cycle, permitting speedy iteration of elements on the fly.
CAD instruments speed up growth and assist help traceability, compliance, and collaboration throughout the automotive provide chain. Engineers can run crash simulations and check thermal habits early within the course of. As soon as the half is validated, it’s able to ship straight to the printer, with no tooling required.
Getting ready Elements for AM

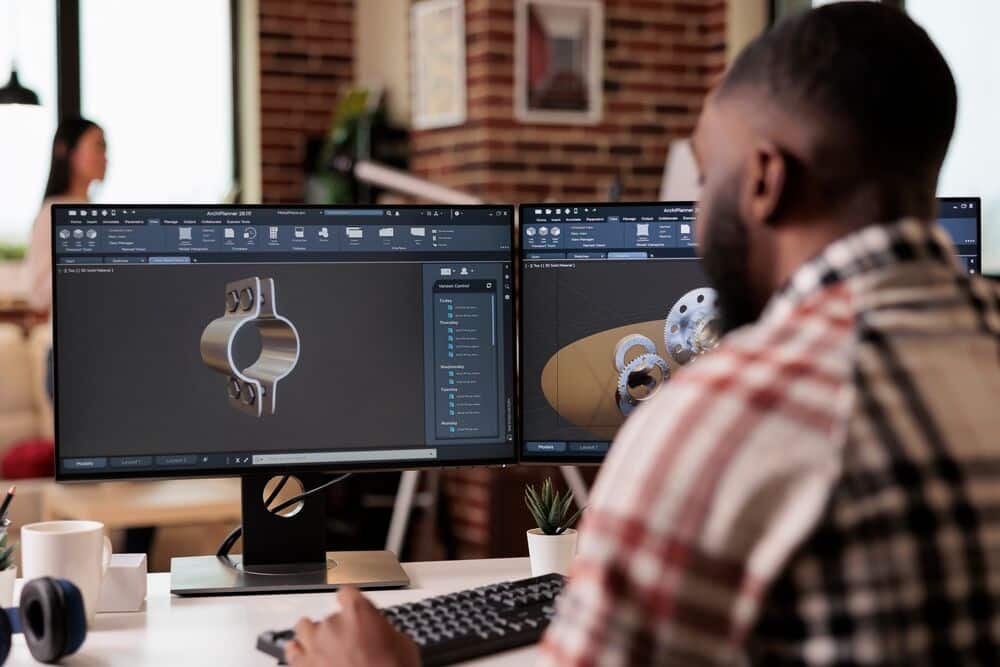

Earlier than a layer is printed, the whole lot begins in CAD. Engineers use CAD software program to mannequin, check, and refine elements (Determine 1). Many out there instruments, equivalent to PTC Creo, Siemens NX, and CATIA, permit for complicated floor modeling, parametric management, and simulation of stress, airflow, or thermal efficiency, that are essential for high-performance automotive functions. For smaller groups and extra speedy growth cycles, Autodesk Fusion 360 gives built-in generative design and simulation options.
As soon as an element is prepared for testing, slicing instruments put together it for printing. These functions translate CAD fashions into layer-by-layer directions, managing the whole lot from help constructions to publicity parameters. Industrial instruments like Autodesk Fusion with Netfabb are designed to assist with half restore, nesting, and construct simulations to scale back failures and enhance throughput. EOSPRINT is used with steel AM techniques to fine-tune elements, whereas Siemens NX AM integrates slicing straight into the CAD workflow.
These instruments assist guarantee repeatability, high quality, and materials effectivity, particularly for purposeful prototypes or end-use elements.
Lighter Elements and Higher Efficiency
Weight is the enemy of effectivity, particularly for electrical automobiles. AM helps clear up this problem by altering what supplies are used and the way.
Quite than merely swapping metal for aluminum, AM allows structural rethinking. For instance, brackets printed utilizing laser powder mattress fusion (LPBF) can scale back weight by as much as 40 p.c whereas sustaining mechanical power.[3] These light-weight elements are perfect for brackets, mounts, housings, and different load-bearing functions.
Supplies like AlSi10Mg, Ti64, PA12, and ULTEM give engineers many choices for thermal insulation, electromagnetic interference (EMI) shielding, and warmth resistance.
- AlSi10Mg, a light-weight aluminum alloy with good thermal properties. It’s made of roughly 90 p.c aluminum (Al), 10 p.c silicon (Si), and 0.3–0.5 p.c magnesium (Mg).
- Ti64, a titanium (Ti) alloy prized for its strength-to-weight ratio. It’s product of 90 p.c Ti, 6 p.c Al, and 4 p.c vanadium (V).
- PA12, a polymer product of polyamide (nylon) that displays glorious mechanical stability. The 12 signifies the variety of carbon atoms within the polymer’s repeating unit (12-carbon monomer chain), giving it distinctive flexibility and low water absorption in comparison with different nylons like PA6 or PA66.
- Polyetherimide (PEI, additionally identified by the model identify ULTEM), a high-performance thermoplastic with glorious warmth and chemical resistance. It’s designed to face up to steady use temperatures as much as 170–200°C (338–392°F), so it’s excellent for under-hood functions or high-voltage elements.
However geometry is simply as vital as materials. This mix of fabric science and structural design permits engineers to create the wanted lighter, smarter elements.
Digital Stock and Provide Chains
AM is not only altering how elements are made; it’s also reworking how they’re stocked.
As a substitute of sustaining large quantities of bodily stock, the automakers can transfer towards digital warehousing. Uncommon or out of date elements can now be saved as 3D fashions and printed on demand. This can drastically lower lead instances and warehousing prices, as all they should do is print the half as wanted.
Mercedes-Benz and another producers are already utilizing AM to maintain basic vehicles on the street by printing uncommon elements that may be in any other case unavailable.[5] Now that 3D printers can deal with extra sturdy supplies, even many automobile fanatics have begun recreating out of date elements and customized elements for vehicles and bikes.
AM is beginning to match into the identical digital techniques that handle factories. Connecting with machine execution techniques (MES) and enterprise useful resource planning (ERP) techniques, printed elements will be embedded with QR codes or serial numbers, making them simpler to trace.
This digital integration helps producers monitor stock in actual time, hint when and the place an element was made, and plan upkeep earlier than a failure occurs. When an element will get changed, its full historical past can stick with the car.
Overcoming Limitations to Adoption
Regardless of AM’s potential, it faces some technical and operational challenges. These embrace porosity in steel prints, floor roughness, and an absence of industry-standard specs. Dimensional accuracy, particularly on sealing surfaces, stays a vital problem.
Options are rising because the {industry} pushes ahead. Put up-processing automation, inline imaginative and prescient inspection techniques, and thermal therapies enhance half high quality and consistency. Requirements from organizations like SAE Worldwide and ISO/ASTM are serving to align expectations throughout the {industry}.
BMW’s Additive Manufacturing Campus is a first-rate instance of the evolution within the {industry} that brings collectively design, analysis, and manufacturing beneath one roof to enhance scalability.
Practical integration can be on the rise. Engineers are embedding fluid channels, antennas, and sensors straight into steel 3D prints, lowering half depend and rising reliability.
Hybrid printing (i.e., combining pc numerical management (CNC) machining and AM) and synthetic intelligence (AI)-driven high quality inspection are being explored. Firms like Divergent are mixing generative design, robotics, and 3D printing to rethink how vehicles are constructed from the chassis up.[9]
An Various View: Printing Complete Automobiles
Whereas most automakers use AM for particular elements or processes, others are exploring the way it might create your complete car.
For instance, Slate Automotive is leveraging open-source 3D printing to supply customizable electrical vans, already garnering over 100,000 refundable reservations. Customers can obtain STL recordsdata to switch truck elements like grilles, mild covers, or sprint mounts to personalize their automobiles.[10]
The car as a platform mannequin might sign a shift towards modular, community-driven automobile growth, the place customers can play a job in how kind and performance evolve in actual time.
It should additionally problem the normal provide chain by enabling localized manufacturing, the place shoppers, mechanics, or small outlets might print alternative elements or customized options on demand. This would scale back the general time spent on repairs and customization. As software-defined automobiles turn out to be extra frequent, AM might provide the bodily complement: user-defined {hardware}.
Conclusion
AM is not only a device for tinkering in R&D labs. It’s on its approach to changing into elementary to fashionable automotive engineering, shaping how automobiles are designed, validated, produced, and even serviced.
As materials capabilities enhance and clever automation scales up, AM is poised to take its place on the principle meeting line. For engineers, meaning extra flexibility, quicker outcomes, and the liberty to construct higher vehicles, one layer at a time. This evolution might have an effect as huge as Ford’s Mannequin T manufacturing line has had on the {industry}.
