Designed for industrial, communications, and robotics techniques, these rugged board-mount filters ship distinctive differential mode noise suppression in a compact footprint—streamlining EMI compliance and boosting system reliability.
TDK Company has launched the TDK-Lambda RGF sequence — compact, board-mount EMI filters designed to satisfy the demanding necessities of high-input present energy provide purposes. Engineered for industrial and industrial environments, these 20A and 40A filters present excellent differential mode noise suppression, serving to system designers streamline electromagnetic compliance with CISPR and associated international requirements.

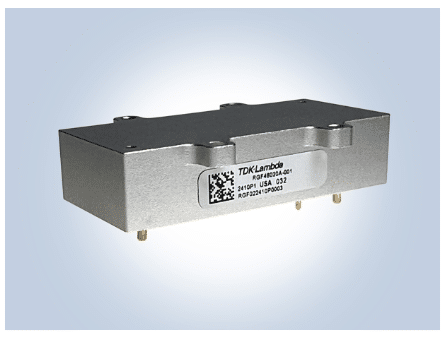

The RGF filters are constructed across the firm’s superior part know-how, delivering sturdy efficiency. Encased in a rugged 5-sided metallic housing, the filters are totally encapsulated to deal with harsh situations. They’re outfitted with two threaded and two non-threaded mounting holes for versatile integration and improved thermal dissipation — making them preferrred for each conduction and convection-cooled techniques.
The important thing options embrace:
- Extremely-compact footprint: 52.8 x 35.2 x 12.7 mm
- Large enter voltage vary: 0 to 80V
- Handles transients as much as 100V for 100ms
- Broad working temperature: -40°C to +120°C (normal)
- Prolonged thermal endurance: as much as +125°C with accelerated biking
Whether or not in harsh industrial settings, COTS (industrial off-the-shelf) platforms, or precision check and measurement techniques, the RGF filters shine. They’re additionally well-suited for high-reliability communications gear, broadcast {hardware}, and fashionable robotics — all environments the place EMI administration is vital.
When paired with non-isolated DC-DC converters, the filters ship broad-spectrum differential mode attenuation, lowering system-wide noise and simplifying EMI compliance efforts. They provide resilience in power-variable environments. The RGF sequence has handed stringent thermal biking checks (700 cycles, as much as 60°C/min ramp charges) and meets MIL-STD-810G requirements for each shock and vibration. These filters are engineered for mission-critical deployments the place sturdiness is non-negotiable.
With compact dimensions, excessive attenuation efficiency, and rugged construct high quality, the RGF EMI filters supply a extremely environment friendly and space-saving answer for noise-sensitive, high-current purposes in demanding environments.
