Edinburgh-based maker Chris Greening has developed a “higher serial plotter,” providing a richer interface for many who discover the serial plotter in-built to the Arduino IDE too restricted — and working fully in-browser because of the WebSerial software programming interface (API).
“I’ve constructed a web-based serial plotter that makes visualizing knowledge from Arduino, [Espressif] ESP32, and different microcontroller initiatives a lot simpler,” Greening explains of the challenge. “No drivers, no installations — simply open your browser and begin plotting! It ought to work the identical was because the Arduino Serial Plotter, so you may simply output your knowledge in a comma separated listing and it’ll plot it on the graph.”
The power to view sensor knowledge in a real-time plot is vital to each fault-finding and interpretation — however whereas the Arduino IDE’s capabilities on this entrance have improved, its built-in performance continues to be considerably restricted. That is what Greening’s different seeks to unravel — by connecting an online browser to the microcontroller over a WebSerial hyperlink, supported in some however not all Chrome-based browsers together with Opera and Edge.

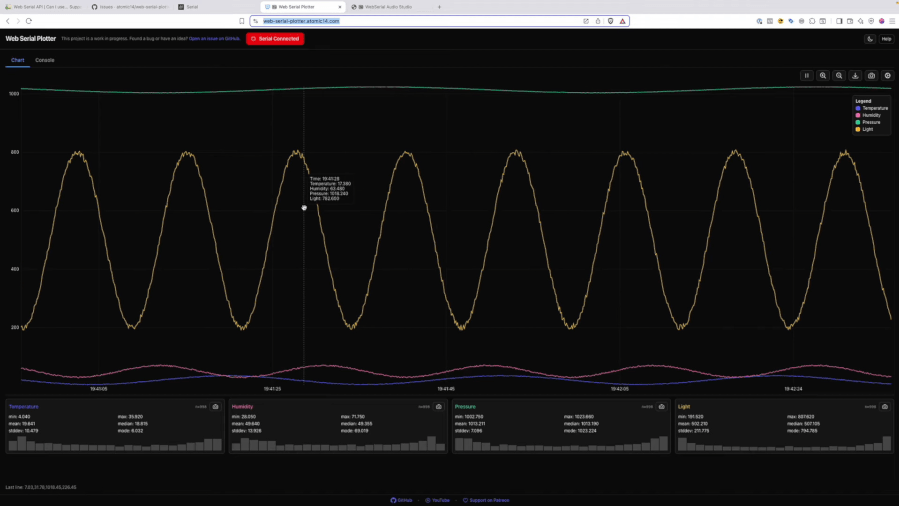

Written Typescript with Vite and React plus Tailwind CSS, and with the help of the Anthropic Claude massive language mannequin, the info visualizer consists of real-time multi-series plotting, pan and zoom performance, automatically-updated real-time histograms and statistics together with minimal, most, imply, median, and commonplace deviation, colour customization, a bidirectional serial console, and a responsive design appropriate for big and small format units.
The supply code for the challenge is on the market on GitHub below the reciprocal GNU Common Public License 3, together with a hyperlink to a reside model with an built-in sign generator for experimentation with out {hardware}; further data is on the market in Greening’s Substack submit.. “Concepts, points, and pull requests are welcome,” Greening writes. “If you happen to’re testing with particular {hardware}, please share machine particulars and pattern output so we will enhance defaults and parsing.”
