Sensor array and magnetic actuation system information and set off the capsule, eliminating the necessity for onboard energy.
Researchers in China design an electronic-mechanical capsule that collects fluid from the gut utilizing magnetic actuation and exterior sensor arrays. The examine is printed in IEEE Transactions on Biomedical Engineering and demonstrates the idea in pig gut fashions.
The system structure hyperlinks three components: the capsule’s passive mechanical design, the exterior magnetic discipline for actuation, and the magnetic sensor array for place and orientation monitoring. Integration of those parts allows sampling with out direct wiring or embedded energy.

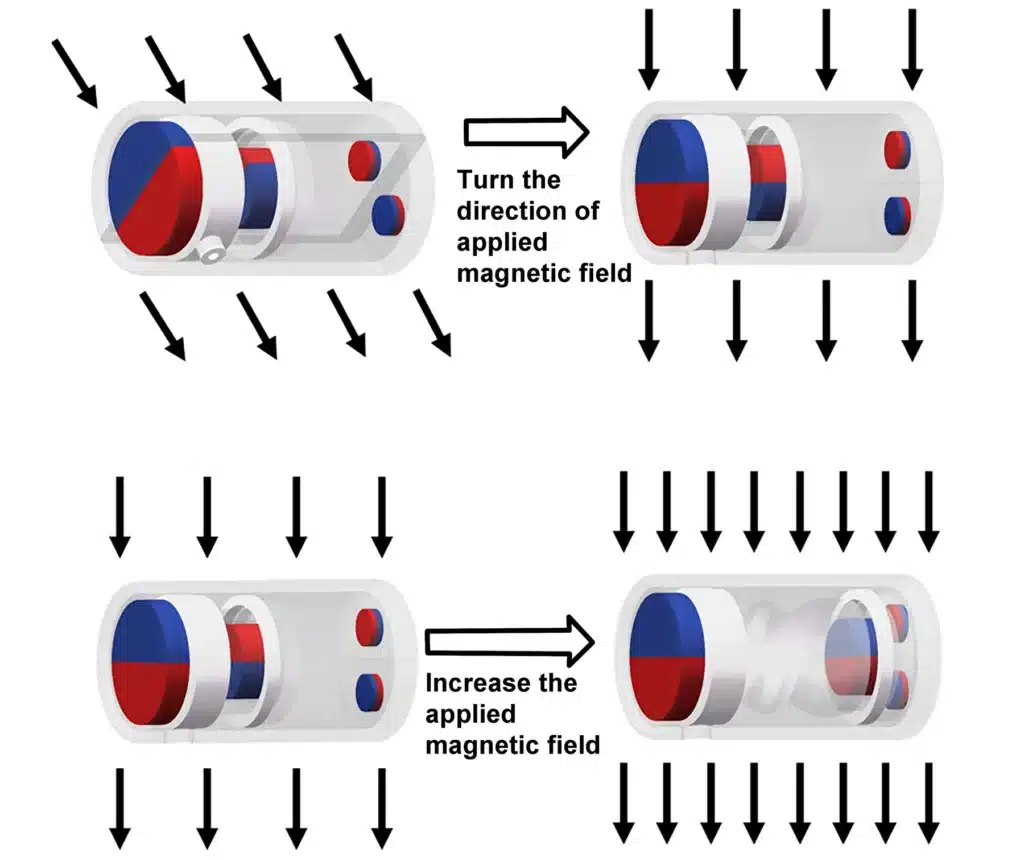

The capsule measures 16.3 by 24.4 millimetres. After swallowing, its place and orientation are tracked in actual time by an exterior magnetic sensor array. This method supplies suggestions to the operator, who makes use of exterior magnets to information the capsule by means of the intestine. The identical magnetic discipline triggers an inside spring mechanism when the capsule reaches the goal web site.
In contrast to energetic digital implants, the capsule requires no onboard energy provide. It features as a passive electromechanical system, managed completely by means of exterior magnetic fields and guided by sensor suggestions. Laboratory assessments affirm that it could possibly gather fluids throughout a spread of viscosities and seal them successfully.
The interior mechanism consists of a compressed spring and a versatile chamber to gather the fluids contained in the intestine. After activation, the spring expands and creates adverse stress contained in the chamber. This suction attracts intestinal fluid by means of a sampling port.
As a result of the capsule aligns with the exterior magnetic discipline, the port faces the fluid supply earlier than activation. The chamber then seals, storing the pattern till the capsule is retrieved after pure exit.
