Reproducing the tactile sensing capabilities of human pores and skin is extraordinarily tough, and is not at all a solved downside. Robots usually depend on applied sciences like piezoelectric or capacitive strain sensors to know the world round them, however the knowledge they produce may be very coarse. Greater-end robots are more and more counting on vision-based tactile sensors (VBTSs), which provide far better decision, and a significantly better understanding of the world, than standard choices.
These VBTSs have some problems with their very own, nevertheless. The fabrication processes required to provide them are significantly extra complicated, which drives up the price of VBTSs. Moreover, the design and manufacturing phases are usually handled as separate processes, which signifies that plenty of forwards and backwards has to happen earlier than an appropriate answer will be discovered, and that slows ahead progress.
A bunch of researchers on the College of Bristol and Imperial Faculty London have an concept that may make VBTSs inexpensive, simpler to provide, and that may improve the pace of innovation on this space.
Their proposal known as CrystalTac , which is a household of VBTSs manufactured utilizing speedy monolithic 3D printing. Utilizing their strategy, the crew can fabricate an entire, built-in sensor in a single print job utilizing multimaterial 3D printing, eliminating lots of the complicated, multi-step meeting processes which have traditionally made VBTSs pricey and sluggish to develop.
Conventional VBTSs convert bodily interplay into optical knowledge utilizing a number of layers and parts — comparable to versatile skins, embedded markers, lenses, and coatings — every usually made utilizing totally different fabrication strategies. The manufacturing workflow is cut up between a design part, the place engineers plan the sensor’s tactile response, and a creation part, the place the sensor is constructed and assembled. This disconnect causes friction, since every new design might not translate effectively into manufacturable {hardware}.
The CrystalTac strategy addresses this problem by unifying design and creation by way of a single-pass printing course of. This permits researchers to quickly take a look at and iterate new sensor architectures with out worrying about whether or not they are often manufactured cost-effectively.
The CrystalTac household consists of 5 sensor varieties — C-Tac, C-Sight, C-SighTac, Vi-C-Tac, and Vi-C-Sight — every demonstrating a distinct tactile sensing mechanism or a mix of them. These mechanisms embody depth mapping, the place gentle ranges change based mostly on contact strain; marker displacement, which tracks the motion of inside patterns; and modality fusion, the place a number of sensing varieties are mixed for richer knowledge.
For example, C-Sight makes use of pixel brightness variations to detect strain depth, whereas C-Tac tracks specifically designed embedded markers to investigate contact pressure and route. Extra superior variations like Vi-C-Tac and Vi-C-Sight mix a number of sensing modes with clear elastomer layers to detect each visible and tactile cues concurrently.
Throughout testing, the CrystalTac sensors confirmed glorious efficiency in sensing decision, responsiveness, and flexibility. Importantly, the speedy monolithic manufacturing methodology considerably diminished manufacturing prices and enabled simple customization, making it viable for scalable deployment in robotics.

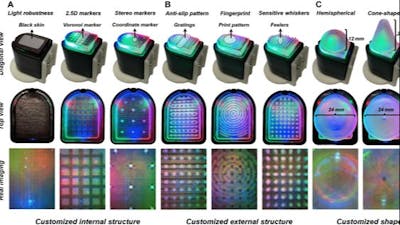

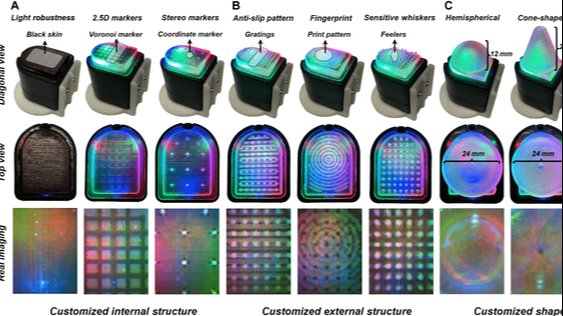

The CrystalTac designs should not meant to be closing merchandise, however slightly a framework and proof-of-concept. The researchers’ intention is to supply the robotics group a versatile, modular platform that may be prolonged or modified for particular functions — whether or not it’s giving a robotic hand the sensitivity of a fingertip, or serving to machines work together extra safely and intuitively with people.CrystalTac vision-based tactile sensors are very versatile (📷: W. Fan et al.)
5 sorts of tactile sensors have been proposed (📷: W. Fan et al.)
The sensors present glorious efficiency at object recognition (📷: W. Fan et al.)
