CamRo is a robotic that captures superior product movies on the contact of a button

Presentation is all the time necessary — even within the maker group. Good pictures and movies get folks within the door and technical achievements maintain them round. However recording good movies may be troublesome, which is why Cameron Coward developed this robotic, known as CamRo, to do the work for him.

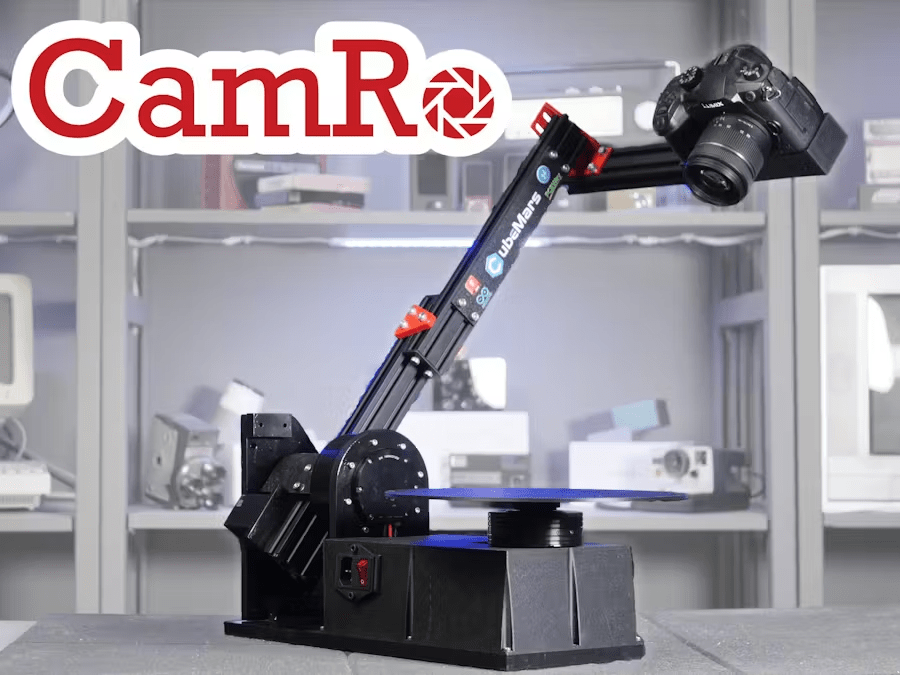

CamRo is a portmanteau of “digital camera” and “robotic,” which describes this machine’s objective. It exists to file movies of comparatively small objects, just like the digital units Coward typically builds. These objects relaxation on the robotic’s round desk, which rotates. As that rotates, the digital camera swings across the desk on a motorized arm. Throw in some enhancing methods and also you get some thrilling video.

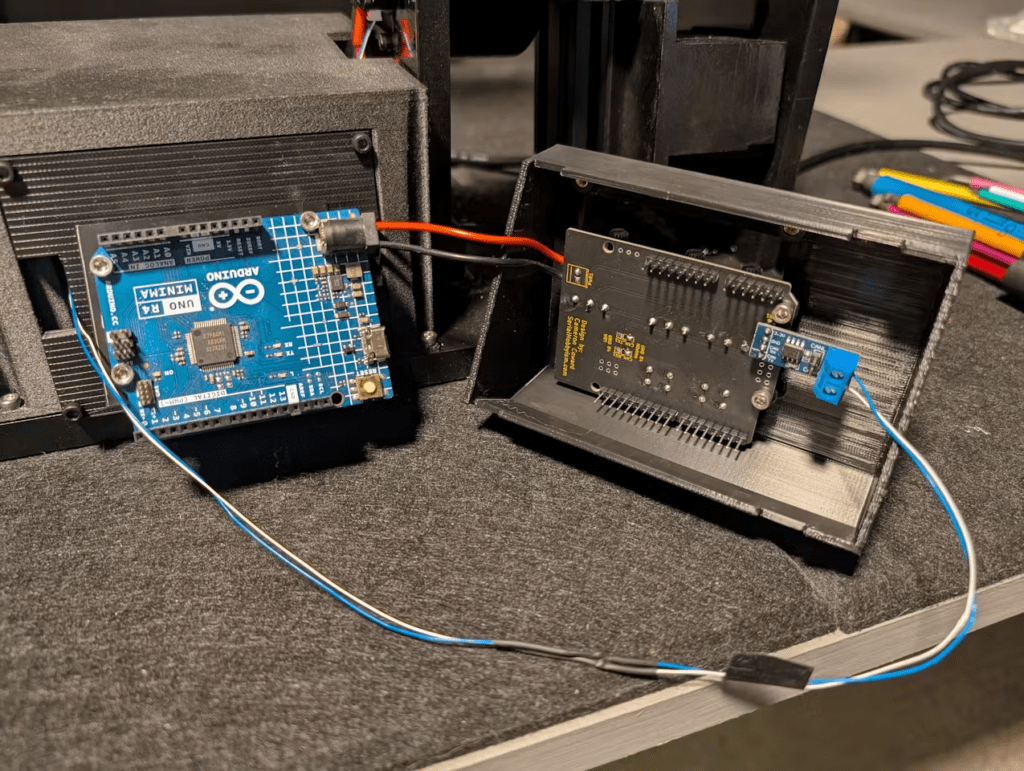

Each the desk and the arm transfer beneath the ability of CubeMars AK-series robotic actuators, which have built-in controllers and planetary gearboxes. An Arduino UNO R4 Minima controls these via a CAN Bus transceiver on a customized protect. The protect additionally helps the Arduino UNO R4 WiFi, creating the potential for extra superior management.

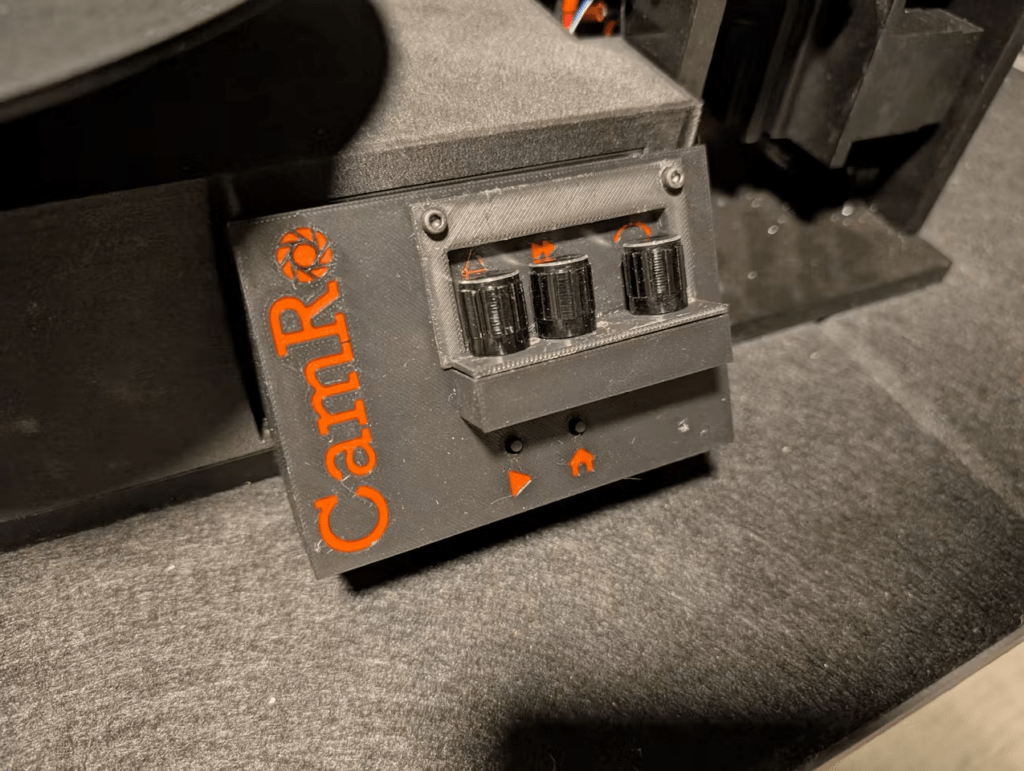

The consumer units the parameters for a shot via a easy management panel consisting of three potentiometers and two buttons. The potentiometer positions decide the arm angle, the arm pace, the desk rotation path, and the desk pace. One button initiates a sensorless homing sequence after startup and the opposite begins the motion for the shot.

Constructing CamRo, nonetheless, does require a number of fabrication methods. These embody CNC-milling, guide milling, guide turning on a lathe, welding, and 3D printing. However the result’s a powerful robotic that may simply carry heavy skilled DSLR and mirrorless cameras, as a way to file compelling product movies.
