With tens of thousands and thousands of people within the US alone dwelling with diabetes, it’s a main well being concern. These persons are in danger for some very critical problems, with an elevated danger for situations like coronary heart illness, stroke, kidney illness, and even dying. Luckily, most of those extra critical outcomes will be saved at bay via a correct remedy routine. However it has been estimated that as much as 20% of individuals dwelling with diabetes are unaware that they’ve it, which prevents them from searching for medical care.
At current, diagnostic exams for diabetes require a visit to the physician’s workplace, and sure some lab work. The fee, concern of a blood draw, and inconvenience of different procedures are sufficient to make many individuals decline screening for the situation — particularly those who do not know they might have it. To catch folks that aren’t being served by present applied sciences, we urgently want a low-cost and noninvasive solution to take a look at for diabetes and prediabetes.
Simply breathe
This void may very well be crammed by a brand new diagnostic software that has simply been described by a bunch led by researchers at The Pennsylvania State College and Hebei College of Know-how. They’ve developed a small sensor that may precisely diagnose each diabetes and prediabetes. To make use of it, one solely must breathe on it.
In contrast to conventional exams that analyze glucose within the blood or in sweat, this machine detects acetone within the breath. Acetone is produced naturally within the physique as fats is damaged down, and whereas everybody exhales some quantity of it, concentrations above about 1.8 elements per million have been linked to the presence of diabetes. By specializing in this biomarker, the staff created a way that avoids the necessity for invasive blood attracts or sophisticated lab work.

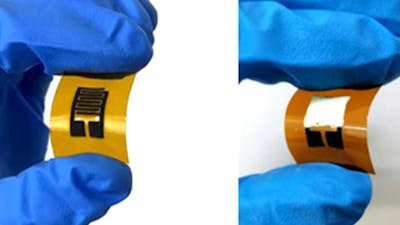

The sensor is made from a cloth referred to as laser-induced graphene (LIG). Created by exposing polyimide movie to a carbon dioxide laser, the method “toasts” the fabric right into a porous, few-layered graphene construction that’s extremely permeable to gases. This porous nature will increase the possibilities of capturing acetone molecules from breath. Nevertheless, LIG alone isn’t selective sufficient, so the researchers mixed it with zinc oxide. Collectively, these supplies kind a junction that enables for extremely particular detection of acetone whereas ignoring different gases.
One problem the staff confronted was the excessive humidity of human breath. Water molecules can intrude with the sensor by competing with acetone for binding websites. To beat this, the researchers added a molecular sieve membrane that blocks water vapor whereas permitting acetone to move via. Because of this, the machine can perform reliably even in humid situations.
Drawback solved?
In a collection of exams, it was discovered that the sensor can detect acetone at concentrations as little as 4 elements per billion, with a fast response and restoration time of simply over 20 seconds. Due to this sensitivity, it was in a position to clearly distinguish between the breath of diabetic sufferers and wholesome people, making it a promising software for early prognosis.
Presently, the prototype requires that sufferers exhale right into a bag earlier than the pattern is examined, to attenuate interference from ambient air. The researchers hope to refine the design within the close to future so it could possibly finally be used underneath the nostril or built-in right into a face masks for steady monitoring.
