Quantum physicist Brandon Li is trying to dig as deep as attainable into the inside workings of the semiconductors that drive fashionable expertise — and has constructed a simulator that lets anybody draw their very own circuit to see the way it works.
“I created this simulator as a result of I needed to get a deeper understanding of how semiconductors work,” Li explains. “It has been my expertise that there is been an absence of fine simulations that display superior subjects in physics. There actually exists many instructional physics simulations, however they’re all both aimed toward decrease instructional ranges, or they’re very restricted in how the consumer can work together with the system. The one examples I’ve seen of simulations that mix superior subjects with a beneficiant quantity of interactivity are the physics applets written by Paul Falstad, to whom I am additionally grateful for trying over my challenge and serving to to transform it to JavaScript.”
Not your common simulator: a instrument written by physicist Brandon Li permits you to peer deep into the inside workings of semiconductor gadgets. (📷: Brandon Li)

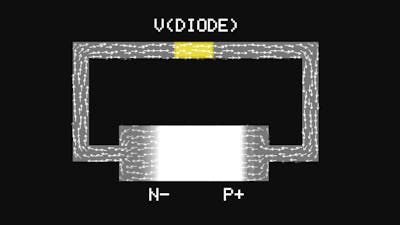

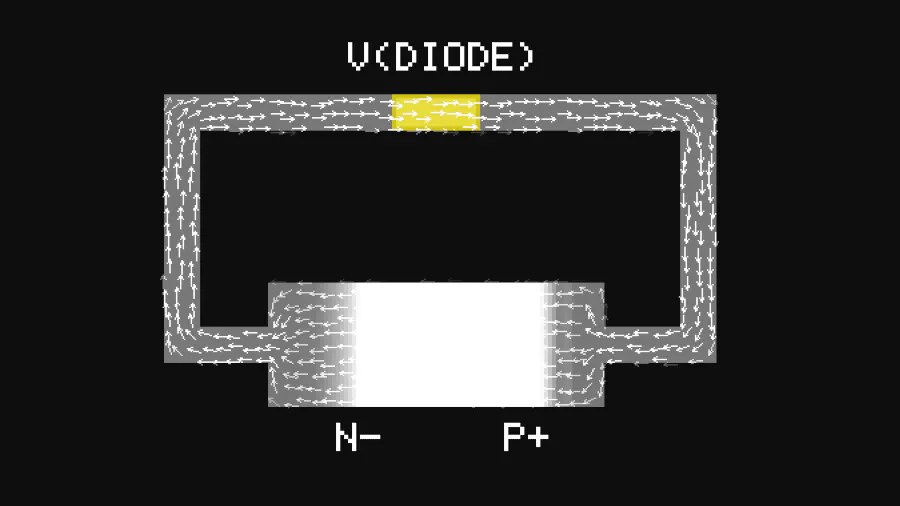

Whereas there aren’t any shortages of circuit simulators on this planet, Li’s is a bit of completely different to most: it simulates on the extent of physics reasonably than performance, permitting you to visualise precisely what occurs whenever you cross voltage by a resistor, or a bridge rectifier, an LED or perhaps a reminiscence cell — to the purpose of having the ability to see the magnetic fields and their interactions.
“I’ve tried to offer customers many alternative methods of interacting with the simulation. Circuits will be drawn with just some clicks of the mouse, permitting customers to simply experiment with their very own circuits,” Li explains. “There are additionally many alternative methods of visualizing the underlying physics that I’ve included into the settings. Every one offers a distinct perspective on the physics that’s taking place. On the finish of the day, I believe the easiest way to make use of my program is to simply begin taking part in round with it.”
The instrument permits for some surprisingly advanced gadgets to be drawn, like this ring oscillator. (📷: Brandon Li)
There are, nevertheless, some limitations to the simulation: it does not mannequin electrical breakdown, quantum tunneling, true velocity saturation, or the Corridor impact; sure materials properties are exaggerated to make their results extra apparent; and metals are modeled as if they have been semiconductors with an enormous equilibrium provider focus. It is actually sufficient, although, to function an academic instrument.
A browser-based model of the simulator is out there on Li’s web site; the supply code is out there on GitHub below the reciprocal GNU Basic Public License 3, together with downloadable releases that run sooner than the online app model — a should for extra difficult circuits like a hoop oscillator.
