Reproducing elements of the human sense of contact is significant for the event of every part from industrial robots to medical gadgets and digital actuality person interfaces. One of the cost-effective methods to present machines the sense of contact is thru the usage of strain sensors. However on the planet of strain sensors, one measurement doesn’t match all. On the whole, they are often tuned to detect very superb variations in strain, or very massive quantities of strain, however not each. And that signifies that the machines that depend on these sensors battle with versatility.
This case undoubtedly has researchers within the area feeling the strain. However an answer could lastly be shut at hand, because of the work of a bunch of engineers at Jilin College. The concept will not be totally their very own, as they borrowed closely from nature, however their scorpion-inspired strain sensor could also be simply what we have to give machines a extra human-like sense of contact sooner or later.
The pure sensing system of a scorpion (📷: P. Wang et al.)
Scorpions, regardless of their poor eyesight, have a unprecedented skill to understand their environment. That is made potential by way of two specialised constructions. First are trichobothria, lengthy hair-like constructions that reply to delicate adjustments in airflow, letting the animal really feel predators or prey shifting close by. Second are slit sensilla, that are sensory neurons beneath tiny cracks within the exoskeleton that convert vibrations within the trichobothria into indicators the nervous system can course of. Collectively, these options permit scorpions to detect each delicate shifts in air currents and powerful floor vibrations with spectacular accuracy.
Impressed by these pure methods, the staff designed a bioinspired piezoresistive strain sensor (BPPS). The gadget addresses the traditional engineering trade-off between sensitivity and vary by combining two complementary components: stress traps and flexure suppression items.
On the highest aspect of a silicon chip, the researchers etched stress traps, that are microscopic constructions that focus mechanical power in a lot the identical approach the slits in a scorpion’s exoskeleton funnel vibrations. These traps significantly improve the sensitivity of the sensor, permitting it to register even the faintest pressures. On the underside of the chip, they added flexure suppression items. These had been modeled on the claw-like bases of scorpion hairs, which restrict extra membrane bending and cut back mechanical noise. Within the synthetic model, the suppression items stop distortions that usually cut back accuracy, thereby extending the linear vary of pressures the gadget can measure.
The design of the robotic (📷: P. Wang et al.)
The result’s a sensor with each excessive sensitivity and glorious linearity throughout a large span of pressures, from 0 to 500 kilopascals. In technical exams, it achieved a sensitivity of 65.56 millivolts per volt per kilopascal and maintained near-perfect linearity (a coefficient of 0.99934). It additionally demonstrated speedy response and restoration instances, in addition to sturdiness over tens of 1000’s of cycles.

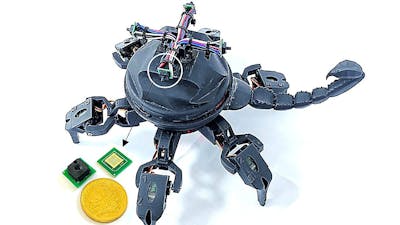

To maneuver past the lab, the researchers built-in the BPPS right into a six-legged robotic and related it to a deep studying community. Very like an actual scorpion, the robotic may sense minute air strain adjustments round its physique and reply accordingly. In demonstrations, it shortly moved away from massive approaching objects, mimicking predator avoidance, and navigated towards smaller targets resembling prey.
By merging cautious engineering with classes from nature, the staff has proven how scorpions’ historic survival instruments can information the event of the subsequent era of high-performance sensors. If extensively adopted, these gadgets may convey machines one step nearer to experiencing the world as residing creatures do.
