Physicist turned self-described “embedded-systems hacker” Bertrand Selva has designed a rugged but compact LoRa repeater, with the aim to ship greater than 5 years of off-grid operation utilizing solely low-cost alkaline batteries.
“In France, on the 433MHz ISM [Industrial, Scientific, and Medical] band, the ANFR [Agence nationale des fréquences, the French FCC] enforces a most transmission energy of +10mW ERP (≈+10dBm); any try to extend vary by elevating the output energy is prohibited,” Selva explains of the necessity for the undertaking. “That is why a repeater is important. By putting the repeater at a excessive level — a hill, tower, or treetop with a transparent line of sight — a single module can cowl a number of tens of kilometers with out exceeding the legally allowed transmission energy.”

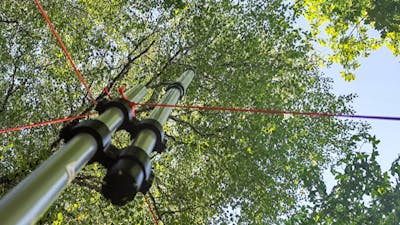

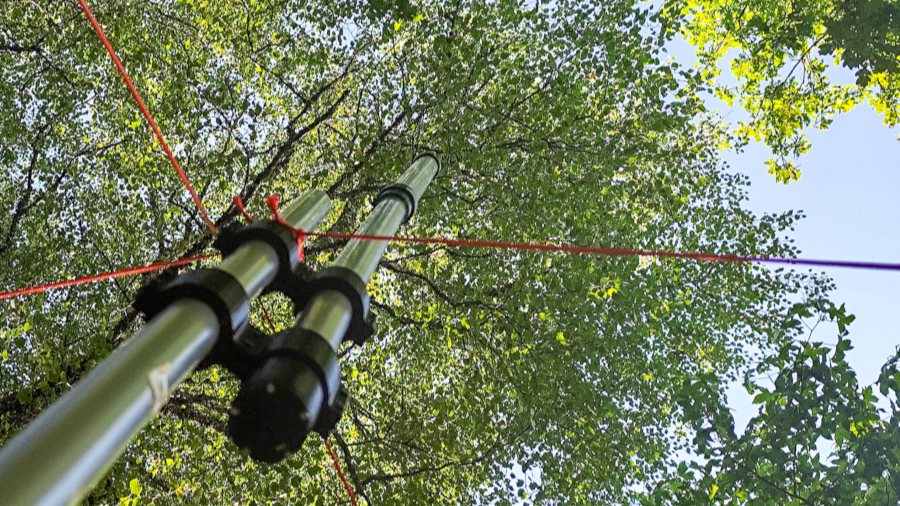

Some low cost PVC piping, low-cost {hardware}, and a stack of D-cell batteries delivers a long-life, rugged LoRa repeater. (📷: Bertrand Selva)
Business LoRa repeaters have a tendency to make use of photo voltaic panels feeding inner or add-on lithium-ion batteries, which Selva rejected as making them too costly for large deployment and comparatively fragile. His answer: the LoRaTube, a low-cost tube-shaped repeater powered by D-size alkaline batteries put in in low cost PCV piping.
“The facility provide relies on 18 LR20 alkaline batteries (D dimension) in collection,” Selva explains, “housed in a compact enclosure lower than 50mm in diameter. This battery selection presents a number of sensible benefits: LR20 cells are cheap (lower than €1 every in most supermarkets) and extensively out there. Every LR20 battery sometimes supplies 12,000 to 18,000mAh, or 18 to 27Wh. With 18 batteries, the whole power quantities to roughly 486Wh, for a complete price of €13.30 (5 packs × €2.66), which interprets to only ~€0.024/Wh — a ridiculously low price in comparison with lithium options.”
One other benefit to the D-cell batteries is that they slide properly inside low cost PCV drainage piping, permitting all wiring to be inner. Solely a small variety of 3D-printed elements — totaling round 120g of filament — are required to carry every thing in place. Supercapacitors present safety in opposition to brownouts at low temperature, when the custom-built LoRa radio module — powered by a Raspberry Pi Pico microcontroller board speaking to a Semtech SX1262-based Ebyte E22-400T or an SX1268-based E22-400T33D LoRa transceiver — spikes its energy calls for throughout transmission.
A second-generation design guarantees to drop the ability draw, concentrating on a runtime of over 5 years. (📷: Bertrand Selva)
An preliminary prototype has already been deployed, however a scarcity of energy administration means the batteries are draining too rapidly — expiring after simply two months, effectively wanting Selva’s five-year goal. A second PCB design is within the works, including FRAM-based logging alongside improved energy administration which chilly hit 7.4 years by what Selva admits is an “optimistic estimate.”
The undertaking is documented in full on Hackaday.io.
