Shenzhen-based ArmSoM has introduced a low-cost computer-on-module, constructed round Rockchip’s RK3506J system-on-chip — and out there direct from the corporate for simply $15 in single-unit portions: the ArmSoM-CM1.
“ArmSoM-CM1 is a computer-on-module (COM) based mostly on the Rockchip RK3506J (tri-core [Arm] Cortex-A7 + single-core Cortex-M0),” the corporate explains of tis compact board. “It contains a wealthy set of peripheral interfaces reminiscent of SAI, USB 2.0 OTG [On-The-Go], RMII, and CAN. This module meets minimal system necessities and consists of an onboard [USB] Kind-C energy & programming port, MIPI DSI show interface, and an SD Card enlargement slot.”

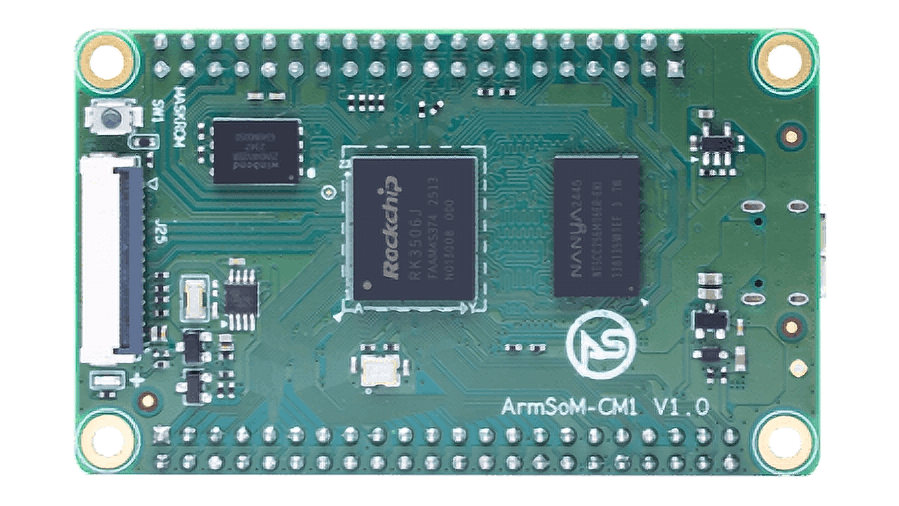

ArmSoM has introduced a low-cost “CM1” computer-on-module (high) and matching service board (above). (📷: ArmSoM)
Designed, the corporate says, with the wants of business management, good home equipment, and human-machine interfaces in thoughts, the ArmSoM-CM1, dropped at our consideration by CNX Software program, is comparatively sedate in its specs: the Rockchip RK3506J at its coronary heart has three considerably dated Arm Cortex-A7 cores operating at as much as 1.5GHz, a single Cortex-M0 core for real-time duties, and a 2D graphics accelerator. That is paired to 512MB of DDR3L RAM and 512MB of on-board SPI flash, the latter expandable via an on-board microSD Card slot although the corporate has hinted on the potential for a cost-reduced model with 256MB of every within the pipeline.
To go together with the module itself, ArmSoM has additionally introduced a service board that breaks out its options into two Quick Ethernet ports, two USB 2.0 Host ports, analog audio out and in, a Wi-Fi module, CAN bus and RS485 connectivity, and a Raspberry Pi-style 40-pin header that gives entry to a subset of the module’s spectacular 72 general-purpose enter/output (GPIO) pins for interfacing with exterior {hardware}. The 2-lane MIPI Show Serial Interface port, in the meantime, is discovered on the COM itself relatively than the breakout board — and there is not any help for an HDMI show.
Extra info on the ArmSoM-CM1 is on the market on the official web site, the place it may be ordered for $15 module-only or $28.50 in a bundle with the service board.
