In case you haven’t heard: CRTs are again. They’re fascinating for retrogaming, as most video games have been designed for CRT TVs till the mid-2000s. However no person makes new CRTs, which suggests you’ll must discover a used unit. The issue is that a lot of these on FB Market and in thrift shops are defective. That’s why tube lovers will wish to construct this reasonably priced CRT tester for his or her thrifting adventures.

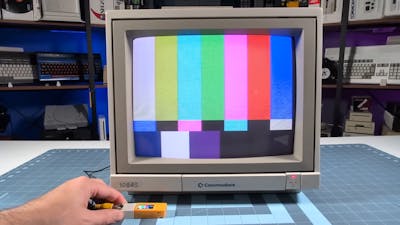

It is a pocket-friendly and battery-powered testing system constructed particularly for CRT screens and TVs. It outputs an ordinary composite analog video sign, so it will likely be suitable with most CRT fashions. Some TVs solely settle for RF enter and a few screens solely settle for VGA enter, so this received’t work with these as it’s. However the majority of fascinating fashions could have a composite enter.
As soon as assembled and flashed, this system will allow you to do assessments to confirm fundamental performance. It’s going to, after all, output a video sign to confirm that the tube is working within the first place. But it surely additionally outputs totally different check patterns, so you’ll be able to be sure that the colours present up accurately and there isn’t any uncommon beam deflection.
To construct this, all you’ll want is an M5Stack M5StickC Plus 2 growth board, an M5Stack M5StickC Proto Hat, the customized PCB for this undertaking, a few resistors, and an RCA jack (yellow, clearly). Relying on the way you get the customized PCB, this tester may value as little as $25 to make.

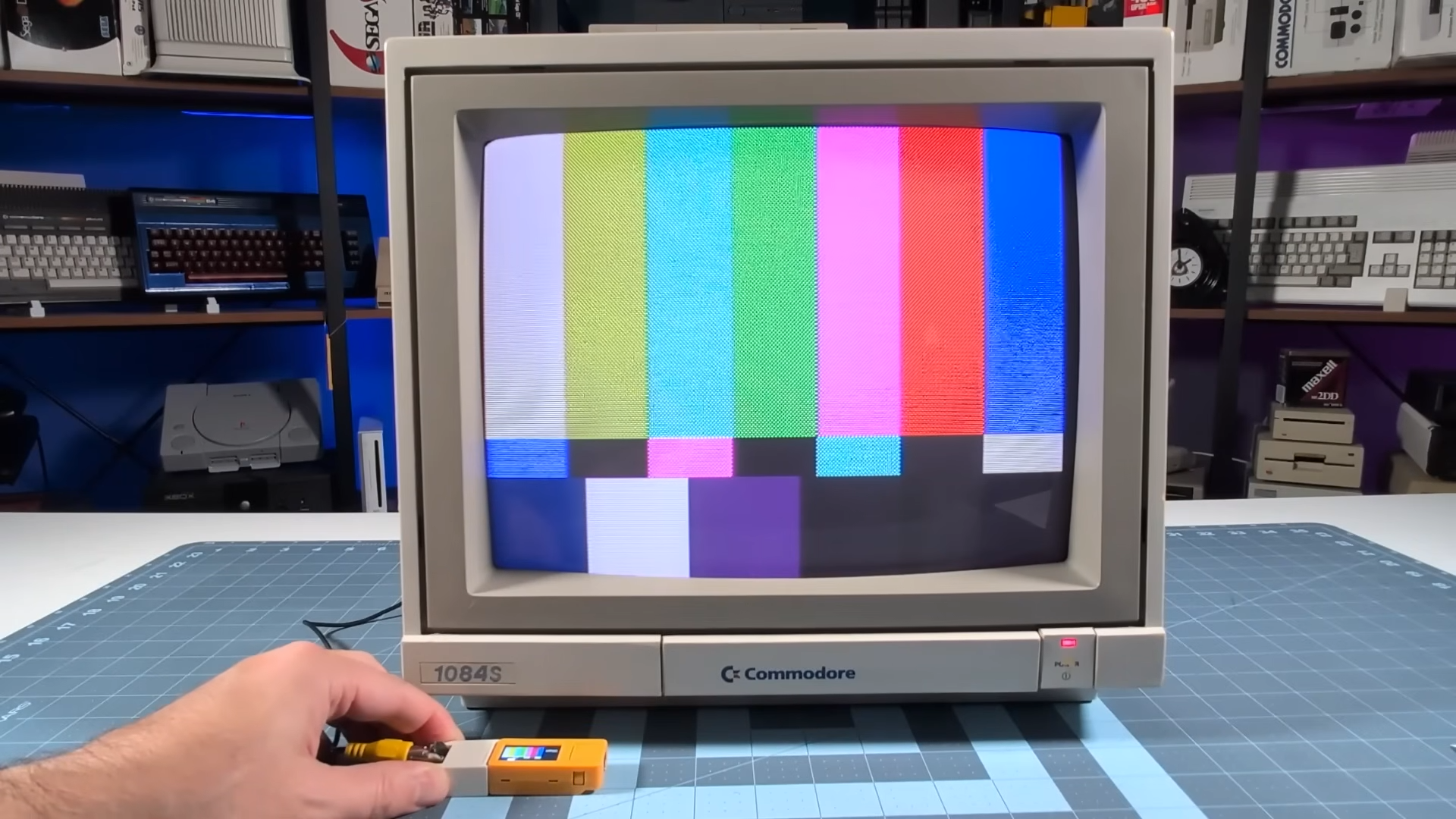

Then you definately merely flash the offered firmware and also you’re able to go. The M5StickC Plus 2 has a built-in lithium battery and charging circuit, so the one wire you want for testing is a composite video cable. Push the primary button to modify between check patterns, which can present up on the CRT and the M5StickC Plus 2’s show. You may even swap between NTSC and PAL!
