In case you are an electronics hobbyist and you’ve got by no means constructed an environmental monitor, there is no such thing as a time like the current. Constructing such a tool is a typical ceremony of passage for brand new makers, however even when you’ve got some expertise underneath your belt, engineer Randy Durrant’s tackle this basic undertaking has acquired some issues to maintain you too. It’s easy sufficient for a newbie to construct, but it’s loaded with options and ripe for growth, which is sufficient to maintain the eye of a seasoned hobbyist.

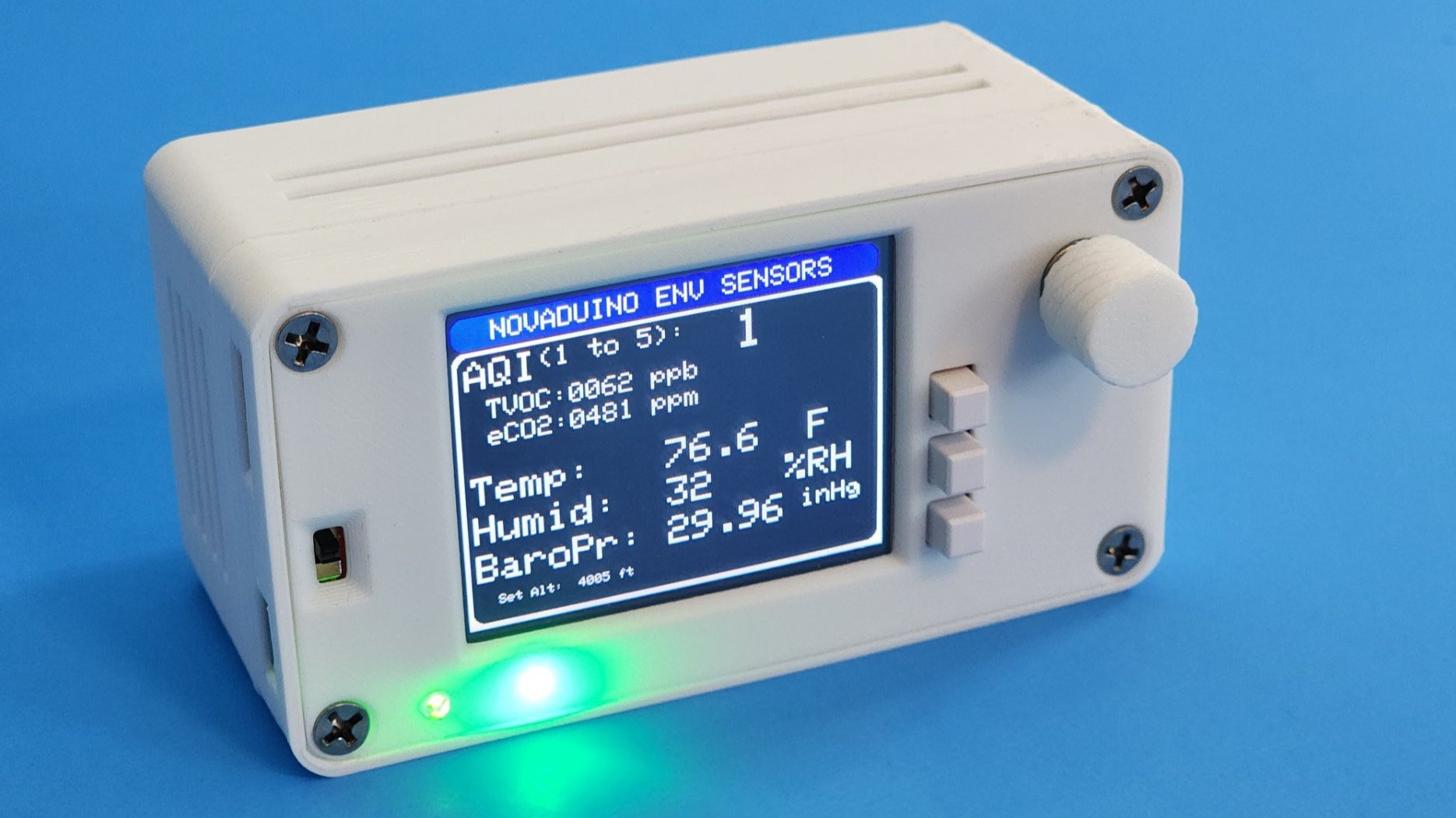

Durrant designed a customized, 3D-printed enclosure to accommodate all the system’s {hardware}. That {hardware} consists of an Adafruit Feather M0 Specific (different Feather boards must also work) to function the principle processing unit, and a Novaduino 2.4-inch colour LCD show. A rotary encoder and set of three tactile buttons are included within the construct to deal with consumer inputs.
The system’s {hardware} (đŸ“·: Randy Durrant)
As designed, the monitor comes geared up with a BME280 sensor to measure temperature, humidity and barometric strain, in addition to a ENS160 sensor that measures a wide range of components related to air high quality. You aren’t restricted by these sensors, after all — you’ll be able to set up something you wish to make the environmental monitor your personal.
Out of the field, the system gives a reasonably complete have a look at your instant environment. The ENS160 retains an eye fixed on whole unstable natural compounds, estimated COâ‚‚, and numerous gases similar to ethanol, toluene, and hydrogen, combining these readings into an Air High quality Index. In the meantime, the BME280 tracks environmental necessities like temperature, humidity, and strain. All of this knowledge is displayed immediately on the Novaduino touchscreen, providing a elegant consumer interface pushed by fully open supply software program.
The again of the case (đŸ“·: Randy Durrant)
As a result of sensors generate warmth and might affect each other, the BME280 is thermally remoted inside a devoted enclosure and separated from the ENS160. Early prototypes revealed temperature drift when the sensors had been adjoining, resulting in enclosure refinements and the addition of software program calibration variables. Customers can additional fine-tune temperature, humidity, and strain offsets.
A small however essential configuration step entails setting your altitude within the software program so the system can calculate sea-level equal barometric strain. This can be a one-time adjustment, although future software program updates could permit modifying the worth immediately by way of the rotary encoder.
With its flexibility, transparency, and expandability, Durrant’s environmental monitor is greater than a weekend undertaking — it’s a platform for experimentation, studying, and customization. Learn up on all the main points to get began by yourself environmental monitor right this moment.
