When the wind begins selecting up, sustaining management over a drone turns into a really difficult proposition. Even extremely skilled operators have a troublesome time staying on target when that wind is available in irregular gusts, because it so usually does. Happily, for a lot of flights these gusts could not truly matter all that a lot. With loads of open house across the car, bouncing round just a little on occasion just isn’t going to trigger too many severe issues. However in confined areas, these gusts can simply trigger a crash.
In fact confined areas typically even have a blocking impact on wind, rendering its results negligible. However these enclosed areas give rise to a different associated downside — the drone’s personal rotors fire up the air, inflicting unpredictable gusts that destabilize it throughout flight. That is particularly problematic in air ducts, the place small drones are incessantly deployed to examine areas that people can’t in any other case attain. These ducts could also be little greater than a foot throughout, so there’s treasured little room for error.
The take a look at rig and a drive map (📷: T. Martin et al.)
To present drone operators a leg up in these conditions, a gaggle led by engineers on the Université de Lorraine in France has developed a novel management algorithm. With the assistance of a intelligent take a look at rig, they have been capable of gather a big dataset describing the turbulence drones expertise when flying in air ducts. They leveraged this knowledge to coach a machine studying mannequin that helps drones to stay secure in these environments.
To get began, the workforce mounted a quadrotor on a robotic arm geared up with a drive/torque sensor. By transferring the drone by means of a whole bunch of positions inside an air duct, they measured the forces appearing on it at every level, successfully making a drive map of the atmosphere.
This drive map revealed that the middle of the duct just isn’t truly the most secure location for the drone. Relying on its place, the rotor wash can recirculate and push the drone towards the partitions, considerably growing the danger of collision. The researchers recognized a candy spot the place these recirculation forces largely cancel out, permitting for a extra secure hover.
An outline of the system structure (📷: T. Martin et al.)
However figuring out the secure zone was solely half the battle. Air ducts are darkish, featureless environments, making it tough for a drone to find out its place relative to the partitions. To deal with this, the workforce geared up their 18-centimeter, 130-gram quadrotor (based mostly on the Bitcraze Bolt platform) with a set of small time-of-flight sensors. These sensors offered primary distance measurements to close by surfaces. A neural community, skilled on movement seize knowledge, interpreted these measurements to estimate the drone’s place in actual time.

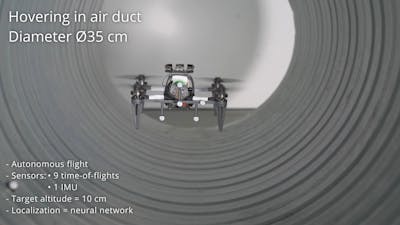

By combining the aerodynamic drive map with this light-weight positioning system, the drone might autonomously preserve itself within the most secure doable location contained in the duct. In assessments, the prototype efficiently hovered in ducts as small as 35 centimeters in diameter and navigated by means of them with out crashing.
If every little thing goes based on plan, future prototypes will combine mission-specific payloads, resembling cameras, thermal imagers, or gasoline sensors, to make them sensible instruments for constructing upkeep and emergency response. And that might be a significant step towards enabling small, absolutely autonomous drones to carry out duties in small areas too harmful or inaccessible for people.
