Whether or not they’re brought on by Parkinson’s illness, stroke, or damage, stability points are an enormous threat to the wellbeing of those who expertise them. Falls that end result from imbalance can have devastating penalties, particularly for older adults. There are hundreds of thousands of fall-related hospitalizations annually, and the impacts vary from hip fractures and traumatic mind accidents to demise. These issues are compounded as many well being programs are overwhelmed and can’t give enough consideration to these susceptible to falls, so new options on this space are sorely wanted.
Thankfully, assist could also be on the way in which. A bunch of researchers at Georgia Tech has created a reasonable wearable system that slips right into a shoe to diagnose stability problems and help medical professionals in higher treating them. The inserts are manufactured utilizing a course of that’s already properly established within the electronics business, so if this technique proves itself to be helpful past the analysis lab, it might simply be mass produced.
The brand new system is a skinny, versatile insole lined with 173 piezoresistive sensors. These sensors, screen-printed immediately onto a versatile circuit board utilizing carbon-based nanomaterials, measure plantar strain — that’s, the distribution of pressure throughout the underside of the foot throughout motion. This can be a very important metric for figuring out imbalances in gait that usually precede falls. Conventional gait evaluation programs require cumbersome tools or can solely be utilized in medical settings. In contrast, this light-weight insole works wirelessly and may be worn throughout on a regular basis actions, providing a steady stream of knowledge.
Alongside the sensor array, the system integrates a compact information acquisition system and a Bluetooth Low Power communication circuit. This small module is housed in a discreet case mounted on the heel, minimizing any disruption to pure strolling. Information is transmitted wirelessly to a smartphone, the place it may be logged, visualized, and even mixed with machine studying algorithms to detect early warning indicators of instability. The excessive density of the sensors makes it potential to trace refined shifts in weight distribution, pinpoint the middle of strain, and analyze completely different phases of the gait cycle.
In experimental trials with wholesome volunteers, the system demonstrated the flexibility to ship correct, real-time plantar strain information beneath regular every day situations. The researchers now plan to develop testing to sufferers with gait impairments, resembling these recovering from stroke or residing with Parkinson’s illness. In addition they envision potential functions that reach past drugs sooner or later. Athletes might use the insole to optimize efficiency, as an illustration.

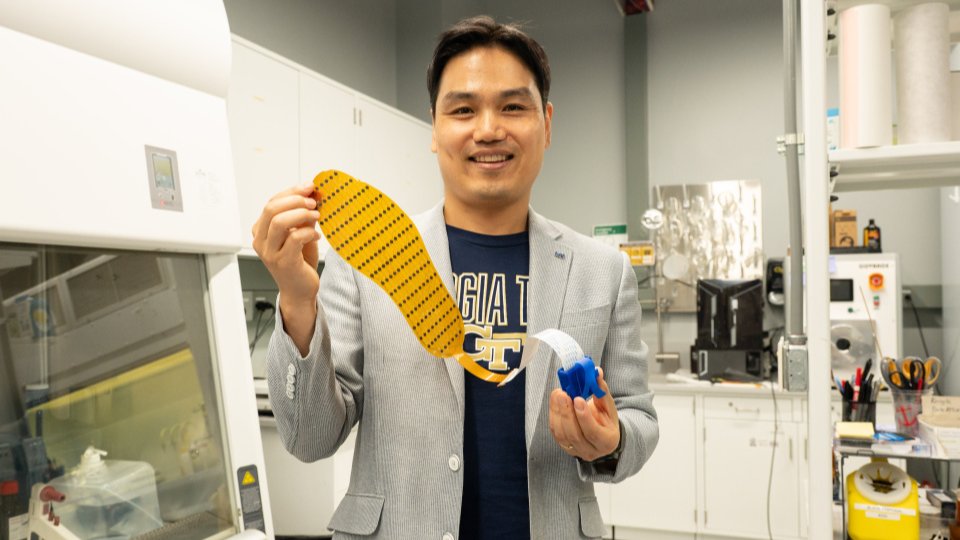

Different competing applied sciences exist for plantar strain sensing, resembling those who use capacitive or optical sensors. However every has limitations — whether or not in sturdiness, accuracy, or consolation — which have hindered their adoption up to now. By selecting piezoresistive sensing with a customized carbon-epoxy-elastomer ink combination, the workforce achieved each excessive sensitivity and robustness. Mixed with the affordability of this expertise, that is perhaps sufficient to make it a winner.A member of the workforce displaying off the good insole (📷: Joya Chapman)
A have a look at the design of the system (📷: J. Lee et al.)
Measurements captured by the sensors (📷: J. Lee et al.)
