The DAN-F10N dual-band GNSS receiver from u-blox will get its personal GNSS Flex pHAT and Module!
Howdy everybody! Welcome again to a different Friday product put up right here at SparkFun Electronics. This week, we’re comfortable to introduce you to 2 new boards being added to our modular GNSS Flex product line that simply provides GNSS performance to your Raspberry Pi or different SBC eqiupped with a 40-pin GPIO header: the DAN-F10N GNSS Flex pHAT and DAN-F10N GNSS Flex Module! Following that, now we have a brand new model of our WS2812B Breakout now outfitted with headers, after which a handful of current parts that assist fill in a number of classes in our catalog. Okay, now we have a bit to get via, so let’s take a better look!

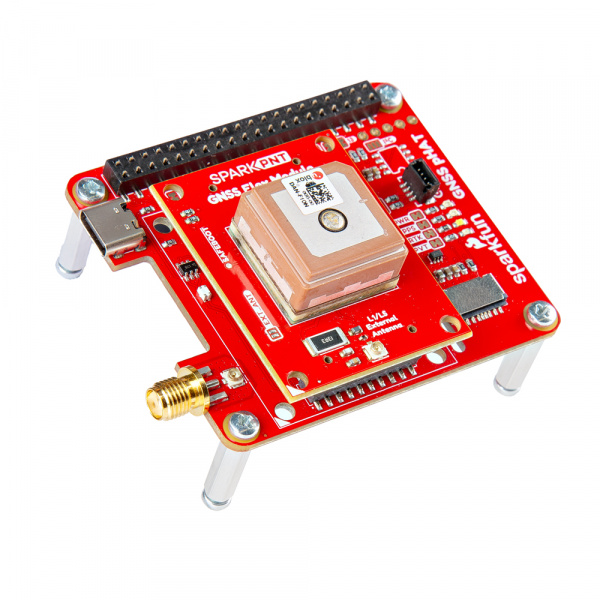

SparkFun GNSS Flex pHAT – DAN-F10N
GPS-29491
Equip your Raspberry Pi initiatives with meter-level, dual-band GNSS positioning utilizing the SparkFun DAN-F10N GNSS Flex pHAT. This improvement platform combines our versatile GNSS Flex pHAT service board with the dependable DAN-F10N GNSS Flex Module, offering an inexpensive and easy-to-integrate answer for any single-board pc with a 40-pin header.
The GNSS Flex pHAT acts because the bridge between your Raspberry Pi and the modular SparkPNT ecosystem. It mounts securely by way of an prolonged 40-pin header and connects to the included GNSS module utilizing standardized 2×10-pin headers, making it easy to swap modules for repairs or future upgrades.
Meet the SparkFun DAN-F10N GNSS Flex Module, a compact PNT receiver for dependable, meter-level accuracy positioning. This module is a part of our SparkPNT GNSS Flex sequence, designed to supply your Raspberry Pi or comparable SBC with modular GNSS capabilities. Every GNSS Flex Module is pin-compatible with a GNSS Flex pHAT and simply swappable, permitting you to effortlessly restore or improve your GNSS receiver with out redesigning your complete system. The standardized 2×10-pin (2mm pitch) headers get away key UART, PPS, and occasion indicators for seamless integration.
Begin your addressable LED mission sooner than ever with the SparkFun WS2812B RGB LED Breakout (with Headers). This model of the board comes with headers pre-soldered in your comfort, permitting you to plug it instantly right into a breadboard with no soldering required. It options the favored WS2812B (generally often known as a “NeoPixel”), an all-in-one part that integrates a full-color LED and a controller right into a single bundle. We nonetheless carry a model of this board with out headers, as nicely!
The FT230X USB Bridge is a compact USB to serial UART interface IC, engineered with an optimized pin rely for space-constrained functions. It supplies a easy and environment friendly answer for including USB 2.0 connectivity to microcontroller designs, considerably decreasing the required PCB footprint and simplifying structure.
The TCR2EF is a CMOS single output voltage regulator with an on/off management enter, that includes low dropout voltage, low output noise voltage and quick load transient response. With 200mA Mounted voltage able to outputting 3.3V. They characteristic overcurrent safety, an Auto-discharge perform.
These are Philips-head M2.5-0.45 screws and hex M2.5; 16mm standoffs. Every are supreme as standoffs and are utilized in our Raspberry Pi GNSS Flex pHAT! Each bit of {hardware} is offered individually.

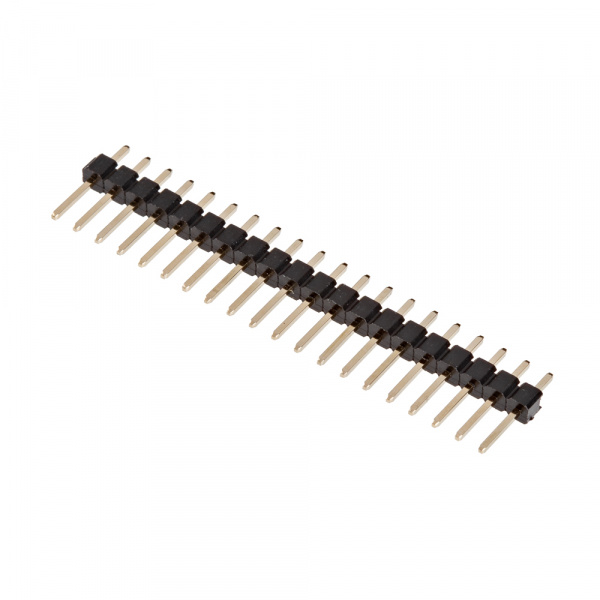

Header – 1×20 (Male, 0.1″)
PRT-29760
Final up this week is that this single row of 20-pin, break free male headers. Will be reduce to dimension with a pair of wire-cutters. Commonplace 0.1″ (2.54mm) spacing. They mate very nicely with break free male headers.
That is it for this week at SparkFun. As at all times, we won’t wait to see what you make! Shoot us a tweet @sparkfun, or tell us on Instagram, Fb or LinkedIn. Please be protected on the market, be sort to at least one one other! Blissful hacking!
