In relation to haptic suggestions, vibrotactile programs usually are not the most effective out there expertise, and they’re actually not the long run. However what they lack in richness and backbone of the sensations they elicit of their customers, they make up for in practicality and value. Requiring little various vibration motors for operation, these programs could be deployed in nearly any client {hardware}. So for every little thing from digital actuality to gaming, vibrotactile suggestions goes to be with us for the foreseeable future.
Whether it is the best choice out there for many purposes, then we could as effectively make the most effective of it, says a gaggle of researchers on the Nara Institute of Science and Know-how. And what higher approach to take advantage of a vibrotactile system than by sticking it throughout your physique? The group got here up with a versatile and modular vibrotactile suggestions system known as Tape-Tics that makes including in depth haptic suggestions to any software as simple as making use of items of tape.

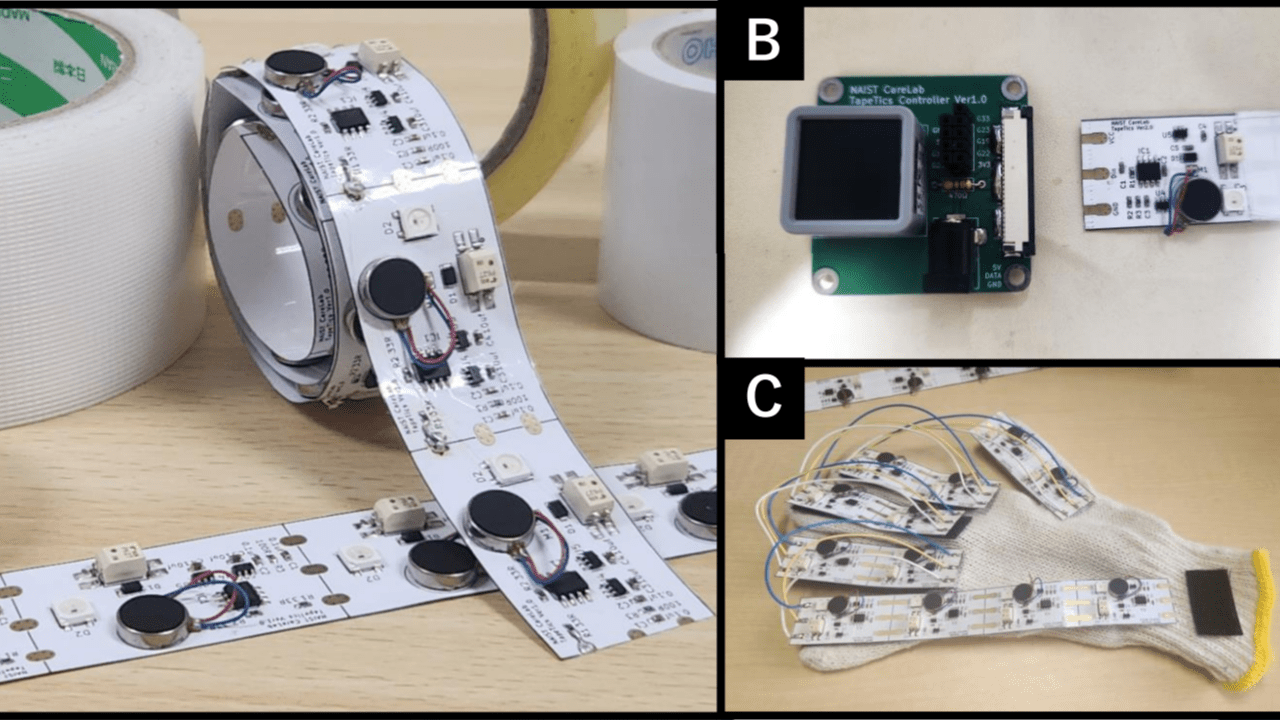

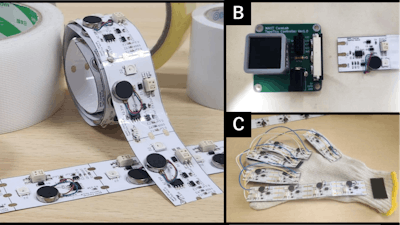

A better take a look at the {hardware} (📷: C. Paniagua et al.)
Tape-Tics is designed to beat two main challenges which have lengthy restricted vibrotactile programs: rigid type components and sophisticated wiring. Conventional programs require separate actuators linked by bundles of wires, making it tough to create prototypes that ship coordinated sensations throughout a number of physique areas. Tape-Tics replaces this complexity with a strip-based resolution — a sensible tape that integrates vibration motors and LEDs on a versatile printed circuit. Customers can reduce it to any size, connect it to curved surfaces or physique elements, and immediately create a multi-point tactile interface.
Every phase, or “node,” of Tape-Tics comprises three elements: a small eccentric rotating mass vibration motor, an RGB LED, and an LED driver chip. These nodes are spaced alongside a skinny polyimide-based versatile printed circuit simply 0.11 millimeters thick. Energy, floor, and information connections run constantly alongside the tape, permitting a number of nodes to be chained collectively. As a result of every node could be individually managed, the system can produce advanced spatial and temporal vibration patterns, with every motor’s depth adjustable throughout 256 ranges.
A separate Grasp Node homes the management electronics. This module makes use of an M5Stack Atom Matrix microcontroller, which communicates wirelessly with a pc through Bluetooth Low Power. Customers can join further sensors via GPIO pins, making the system simply extendable. Energy is provided by a 5-volt battery pack, retaining the system transportable and protected for wearable purposes.
The system structure (📷: C. Paniagua et al.)
Customers can function the system via a graphical interface that runs on a PC. Developed with a visible programming setting, the interface lets customers regulate vibration depth, length, and LED colour with easy sliders and buttons. A built-in timeline editor permits for intuitive sequencing of vibration patterns, very similar to modifying a video clip. Settings could be saved, reloaded, and transmitted wirelessly to the system, making it simple for even newcomers to create customized haptic experiences.
Every node prices below three {dollars} per vibration module, whereas the Grasp Node might be constructed for round twenty-two {dollars}. Regardless of its low price, the system demonstrated glorious scalability and low energy consumption, making it appropriate for classroom use, analysis experiments, and creative tasks alike.
With its tape-like design, versatile electronics, and plug-and-play usability, Tape-Tics is a artistic approach to make haptic suggestions extra accessible. Whereas it might not ship the high-fidelity sensations of superior haptic suggestions programs, it excels the place many others fall quick: simplicity, versatility, and cost-effectiveness.
