Makers frequently create their very own DIY variations of nearly each digital gadget you possibly can think about, from computer systems to smartwatches. However one factor that you simply rarely see is a DIY good ring. That’s for good cause: becoming the entire tiny parts right into a small enough package deal is almost inconceivable utilizing the kinds of instruments sometimes present in a hobbyist’s toolbox. To make one thing that appears first rate and is beneficial, you want entry to industrial-grade manufacturing amenities focusing on micro-assembly and encapsulation.
Putting in new batteries (📷: Gadget Trade)
Regardless of the challenges, YouTuber Gadget Trade determined to present it a whirl anyway. Relatively than design the electronics from scratch, Gadget Trade salvaged elements from an outdated smartwatch. This did make issues simpler, but it surely additionally made every part bigger. Even so, regardless of the outsized look, this ring continues to be fairly spectacular for a DIY construct that doesn’t require any particular instruments.
To kick issues off, a mould with a finger-shaped gap was created and epoxy resin was poured into it. This slips over the finger and serves as the bottom of the ring. A smartwatch was then disassembled, and the touchscreen show, management board, and USB-C port have been put aside for reuse. The battery was too giant for a hoop, so it was discarded. As is commonly the case with low-cost smartwatches, there was a faux coronary heart charge sensor, in order that was additionally tossed to the aspect.
The bottom of the machine (📷: Gadget Trade)
An epoxy adhesive was combined as much as connect the display screen, management board, and USB port to the ring base. Extraordinarily small rechargeable batteries have been then adhered to the ring and wired collectively in parallel. This offered the ability wanted, however with out being a single, large inconvenient rectangle just like the watch’s battery. Lastly, a small screw was wired to the management board and put in beneath the show to function a capacitive contact sensor.
As a last contact, clay was used to fill the finger gap and USB port, then your entire machine was submerged in a mould of epoxy resin. After it hardened, the clay was eliminated and the resin was lower and sanded to provide the ultimate ring.

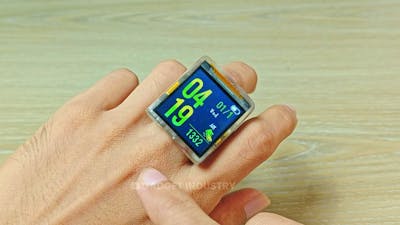

The result’s manner too giant to be comfortably worn as a hoop, however as a DIY venture, there isn’t any denying that this good ring is tremendous cool!
