A buck converter is a DC-DC energy gadget that effectively steps down a voltage to a decrease stage. It makes use of an inductor, resistors, and a capacitor to manage the output, making it notably appropriate for wearable electronics and IoT gadgets.
Low-dropout regulators (LDOs) provide a extra simple method to voltage regulation, however they typically dissipate important power as warmth, thereby undermining effectivity in compact, power-sensitive programs. Buck converters present a extra environment friendly resolution, though the inclusion of an inductor will increase the design footprint.
This compact converter design is predicated on a buck converter IC. The entire energy system, together with the converter, matches inside a 9mm footprint—best for space-constrained purposes whereas leaving room for different important elements.
A key function is its means to ship variable output voltages starting from 1.2V to three.3V DC, achieved by changing a set resistor with a potentiometer. This permits fine-tuned voltage adjustment to match the particular wants of every gadget.
The converter could also be used as a standalone variable-voltage module or built-in straight into wearable electronics.

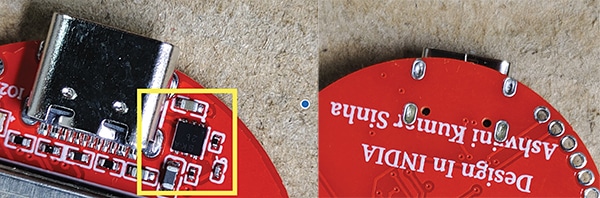

The converter is embedded throughout the gadget’s PCB, offering the specified output voltage vary with over 93% effectivity and no thermal points. The design incorporates the PAM2305D SMD IC, housed in a compact DFN-6 (2×2mm) package deal. Fig. 1 reveals the creator’s DC-DC buck converter built-in into the custom-designed PCB.
In line with the datasheet of the IC chosen for this converter design (for particulars, consult with the IC datasheet), the design requires an inductor, a number of resistors, and capacitors. If a variable output voltage is desired, a potentiometer can be utilized. The entire checklist of wanted SMD elements is supplied in Desk 1.
| Desk 1: Invoice of supplies | |||||||
| Title | Designator | Footprint | Amount | Producer Half | Producer | Provider | Provider Half |
| 10µF Capacitor | C1, C2 | C0402 | 2 | CL05A106MP5NUNC | SAMSUNG | LCSC | C315248 |
| 100pF Capacitor | C3 | C0201 | 1 | GRM0335C1E101JA01D | muRata | LCSC | C76917 |
| 4.7µH Inductor | L1 | L0603 | 1 | CMH160808B4R7MT | FH | LCSC | C394952 |
| 500kΩ Resistor | R1 | RES-ADJ-SMD_3P-L3.8-W3.7_VGF39NCHXT | 1 | VGF39NCHXT-B504 | HDK | LCSC | C22461638 |
| 120kΩ Resistor | R2 | R0201 | 1 | 0201WMF1203TEE | UNI-ROYAL | LCSC | C270362 |
| USB 2.0 Solder Pad | U1 | USB SOLDER PADS | 1 | USB-TYPE-C-018 | DEALON | LCSC | C2927038 |
| PAM2305DGFADJ | U8 | DFN-6_L2.0-W2.0-P0.65-BL-EP | 1 | PAM2305DGFADJ | DIODES | LCSC | C780869 |
| Potmeter SMD (Fig 5) | R1 (Fig 5) | RES-ADJ-SMD_3P-L3.8-W3.7_VGF39NCHXT | 1 | VGF39NCHXT-B504 | HDK | LCSC | C22461638 |
Design
The buck converter IC (PAM2305DGFADJ) comes with six pins. In line with the appliance circuit within the datasheet, it features a VIN pin for the enter voltage, a GND pin for grounding, and an FB pin that receives suggestions to manage the output voltage. The EN (Allow) pin controls the IC’s operation when tied to a pull-up resistor or on to the enter voltage, enabling the IC to be energetic. When pulled low, it disables the converter. The SW (Swap) pin connects to an inductor, and the output voltage is ready utilizing two resistors configured between the SW, FB, and GND pins. Fig. 2 reveals the IC (PAM2305DGFADJ) datasheet pinout and utility circuit.
