Scientists have created what they are saying is the world’s smallest untethered flying robotic, by taking a novel strategy to its design. To attenuate dimension and weight, they’ve moved the bot’s energy and management methods out of its sub-centimeter-wide physique.
Measuring simply 9.4 mm in width and tipping the scales at 21 mg, the robotic is being developed by Prof. Liwei Lin and colleagues on the College of California, Berkeley.
It mimics the flight capabilities of the bumblebee. Like that insect, it may well hover in place, transfer each vertically and horizontally, and hit small targets. Its descendants might someday carry out duties comparable to pollinating crops, or exploring areas too small for atypical drones to entry.

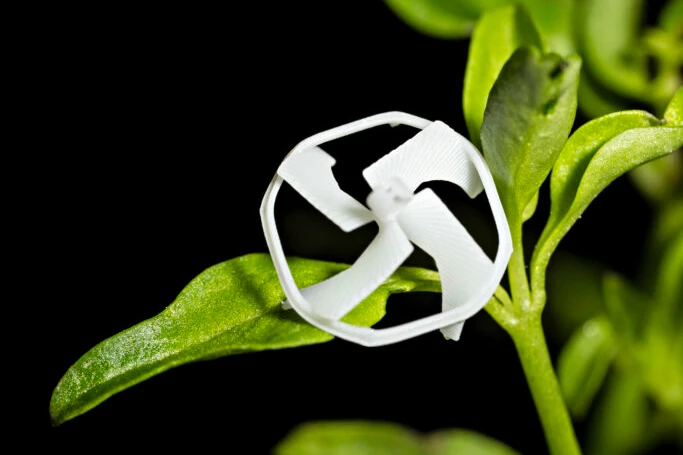

The bot’s 3D-printed polymer physique consists of a four-bladed horizontal propeller, encircled by a “steadiness ring.” Protruding up from the middle of the propeller is a small vertical ring that holds two puck-shaped neodymium everlasting magnets – each is 1 mm huge by 0.5 mm thick.
Adam Lau/Berkeley Engineering
The robotic is powered and steered by an alternating magnetic area which is externally generated alongside a single axis.
Because the bot’s two magnets are concurrently interested in and repelled by that area, they trigger the connected propeller to spin, creating raise. As soon as the robotic has turn out to be airborne, its steadiness ring provides rotational inertia, producing a stability-boosting gyroscopic impact.
Uniformly growing or reducing the power of the magnetic area strikes the robotic up or down by inflicting it to spin sooner or slower, respectively. And by various the magnetic area’s power over horizontal distance, it is doable to maneuver the bot ahead, backward, or sideways accordingly.
Adam Lau/Berkeley Engineering
The scientists now plan on including sensors that can enable the robotic to take care of regular flight by self-correcting for variables comparable to wind gusts. In addition they hope to make the system even smaller, thus lowering its power necessities by using a weaker magnetic area.
A paper on the analysis was lately revealed within the journal Science Advances.
Berkeley engineers created the world’s smallest wi-fi flying robotic!
Supply: UC Berkeley
