Probably the most highly effective features of educational analysis is its propensity to result in discoveries that weren’t even on the researchers’ radar at first of a given investigation. Such circumstances led to a College of Illinois (UI) analysis staff’s realization that 3D printed elements go away signatures of the machines that produced them, that are detectable by AI.
Led by UI professor of mechanical science and engineering Invoice King, the staff just lately printed the outcomes of their examine in an npj Superior Manufacturing paper, “Additive manufacturing supply identification from pictures utilizing deep studying.” King was as stunned as anybody else to see what the undertaking demonstrated.
“After I first noticed it, I didn’t imagine it. We have been seeking to do one thing else,” King instructed me. “This was just a bit facet exploration, but it surely felt like serendipity. As soon as we noticed it, we have been like, this might be a giant deal. I actually needed it to work! So I instructed the staff that if we have been going to do it, we needed to do it the appropriate method — we needed to be one hundred pc positive — as a result of persons are, rightly, going to be actually skeptical.
“That’s why we designed the very elaborate examine that we performed: 9,000 elements, totally different suppliers, with some cooperating with us and a few unaware of what we have been doing, totally different machines, totally different processes, totally different supplies and half designs. We considered every little thing we might throw at it, and constructed the mannequin to work for every little thing.”

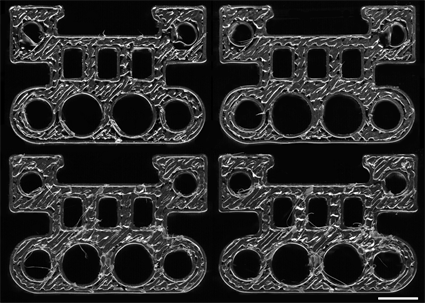

AI-detected “fingerprints” in 3D printed elements: 4 3D printed elements made on 4 totally different printers. A deep studying mannequin can decide the supply machine of every half (Scale bar is 5 mm).
In complete, the staff used 21 totally different machines representing 4 distinctive AM processes:
- Digital gentle synthesis (DLS), utilizing the Carbon printers;
- Multi jet fusion (MJF), utilizing HP printers;
- Stereolithography (SLA), with the Formlabs ecosystem;
- Fused deposition modeling (FDM) printers made by Stratasys.
The staff sourced a complete of 9,192 elements, printed in six distinct supplies, with three separate designs. 2100 of the elements have been used to coach the software program, and 1050 have been in the end examined within the experiment.
The examine’s overwhelming success is encapsulated by one quantity: 98.5, which is the accuracy share achieved by the AI mannequin in tracing elements again to particular printers. Moreover, for simply over half (12) of the printers utilized, the mannequin appropriately recognized elements with out making any errors in any respect.

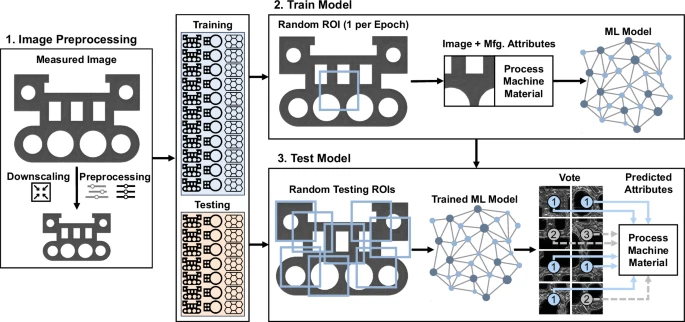

Researchers educated an AI mannequin to match small sections of 3D printed elements to the printer, course of, and materials used to make them.
Notably, these weren’t elements made “within the lab.” The staff labored instantly with Chicago-based service bureau SyBridge Applied sciences (a shut companion of Carbon) and ordered the remainder of the elements from suppliers who weren’t conscious that the elements have been being examined for an experiment:
“About half the elements within the examine have been made by SyBridge, who we have been collaborating with, and for the opposite half, we simply ordered elements from contract producers with out telling them what we have been doing,” mentioned King. “When these elements confirmed up, we took them out of the field and photographed them instantly.
“It really works the identical whether or not or not the manufacturing facility is aware of what you’re doing. I feel that’s one of many largest findings from the examine: the producers don’t should know, they usually don’t have to assist. You, because the buyer and because the person of the expertise, get all of the profit with out the provider’s participation, with out them even having to know what you’re doing.”
From a sensible standpoint, the potential might yield a seemingly countless move of potential use-cases:
Professor William P. King.
“Everyone who works in manufacturing has a narrative a couple of provider altering one thing with out permission, and that’s true for all manufacturing processes together with AM,” famous King. “However provide chains are based mostly on belief. The AI mannequin can inform you if the provider is constant to make use of the machine you authorised, in the event that they did upkeep on the machine, if the provider outsourced the elements, and so on. Abruptly, you may see a number of layers into your provide chain.
“You could possibly actually use this functionality for something, and I feel it has nice industrial utility — I see it being commercialized. My imaginative and prescient is that in the end, you can stroll as much as a component that’s sitting in your manufacturing facility, or in a warehouse or on a loading dock, take {a photograph} together with your cellphone, and your cellphone tells you the place the half got here from.
“When it comes to the place the AI mannequin might make the most important rapid influence, there’s three industries that require one hundred pc inspection: aerospace, medical, and nuclear vitality. In these industries, suppliers are already inspecting each single half at each step alongside the way in which. Since there’s already such a complete current audit path, I feel these provide chains are significantly primed for this expertise to be integrated into the audit path.”
Whereas King sees the software program as having the broadest industrial enchantment regarding its potential to be used with industrial-grade machines, there are actually circumstances to be made, as nicely, for a way the expertise might have a significant influence on elements made with desktop 3D printers:
“If you happen to had a database of printers, you can analyze the elements on a ghost gun and hint it again to the place it was made,” King mentioned. “The identical goes for any type of illicit good — if regulation enforcement made a big seizure, they might determine what elements have been made by a particular group, for example.”

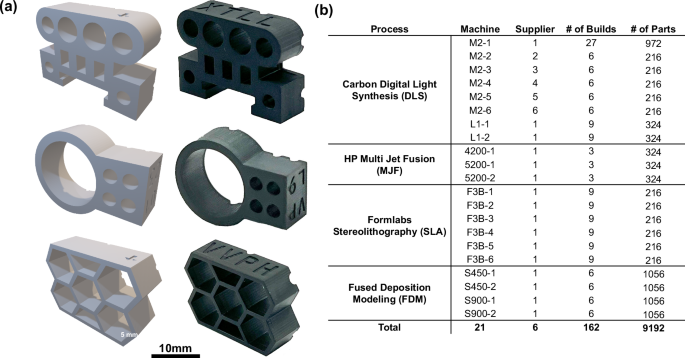

Components used within the examine have been made with totally different printers, supplies, and designs throughout 4 3D printing processes.
Because the supply identification undertaking strikes into its subsequent part, King can also be busy engaged on establishing a large-format, steel AM analysis heart up and working at UI. Introduced in early Might, the brand new web site is backed by over $8 million in Division of Protection (DoD) funding and can give attention to elements made utilizing additive friction stir deposition (AFSD), in addition to wire DED. Particularly, the analysis will goal the floor car provide chain for the US Military:
“The short-term purpose is to have the ability to make spare elements, since that’s an actual ache level for the Military. However because the department begins to design new automobiles and platforms, Military engineers need to have the ability to reap the benefits of AM for that, as nicely. And personal business is clearly fascinated about that, too.
“There are all types of advantages to car design by way of survivability, lightweighting and effectivity, issues of that nature, and each the Military and the automotive sector are fascinated about how AM-enabled design freedom can open up new prospects for mechanical efficiency. That’s an extended cycle, although. The spare elements are extra of a ‘proper now’ type of factor.”
And though King has no rapid plans to include the supply identification analysis into the work being performed on the new facility, he’s actually fascinated about incorporating AI into the combo:
“We predict that AI has a significant function to play serving to us to determine the method and property relationships of those newer AM applied sciences,” affirmed King. “The processes are tremendous sophisticated, and what we wish to have the ability to do is develop these materials science relationships whereas minimizing the construct time and minimizing the variety of specimens required to get the info that we want. In order that’s the place AI is available in. We are able to usher in bodily imaginative and prescient sensors mixed with modeling and simulation, and use information science approaches to assist us flesh out the properties of the supplies.
“What we’re attempting to do is substitute steel fabrications that require castings and forgings. That functionality has actually eroded within the U.S. over the past a number of a long time. As we take into consideration the way forward for provide chains and the way the worldwide economic system has began to evolve into an surroundings with a number of totally different energy facilities, it’s going to be actually necessary for the U.S. to make steel elements. There’s a very compelling case that a few of it might pivot to being made with AM as an alternative of us having to rebuild the previous methods of doing issues.”
