When Ryan Saavedra fell throughout a rock-climbing journey in 2017, he had no concept that the harm to his ring finger would at some point encourage a brand new period of accessible bionic know-how.
Then a pupil on the College of Texas at San Antonio (UTSA) finding out to turn out to be {an electrical} engineer, Saavedra had all the time been fascinated by the hand — its mechanical magnificence, its expressive subtlety. After rupturing the A2 pulley tendon in his finger and dropping the usage of his hand for six months, he skilled the emotional and bodily toll of lowered mobility firsthand. However for him, that frustration turned gasoline.
In 2018, armed with yarn, cardboard, a flex resistor, a servo motor, and an Arduino board, he started constructing his first prosthetic finger — the seed of what would turn out to be a sport changer within the prosthetic hand business.
The Downside with Conventional Prosthetics
As Saavedra dug into the prosthetics panorama, he uncovered an enormous accessibility problem: upper-limb bionic prosthetics may price anyplace from $15,500 to over $200,000. Worse nonetheless, conventional prosthetics usually failed in real-world situations, with restore occasions taking as much as 2-3 months. Sufferers with present bionic arms usually skilled cumbersome usability, making units inconvenient to keep up or adapt.
Ryan Davis, Military Ranger, utilizing Alt-Bionics’ first prototype. Picture courtesy of Alt-Bionics.
Nonetheless, Saavedra wasn’t simply an observer — he needed to resolve the issue.
In his last 12 months at UTSA, he entered a college competitors, the place he introduced a prototype of a bionic hand enhanced with AI. It wasn’t only a undertaking — it was a mission. That undertaking caught the eye of Ryan Davis, a former Military Ranger and triple amputee. When Davis tried the hand and it labored, the affect within the room was simple.
Individuals turned to Saavedra and requested, “What’s subsequent?”
That second crystallized what would turn out to be Alt-Bionics — not simply an engineering enterprise, however a motion to make high-performance, low-cost prosthetics obtainable to those that want them most.
In 2020, Saavedra graduated and based the corporate with a mission to disrupt an business stricken by excessive prices, sluggish repairs, and restricted entry.
The Genesis Hand: Reasonably priced Innovation
Alt Bionics’ flagship product, the Genesis Hand, is a myoelectric prosthetic bionic hand designed to translate muscle alerts into intuitive motion. It stands out for a number of causes:

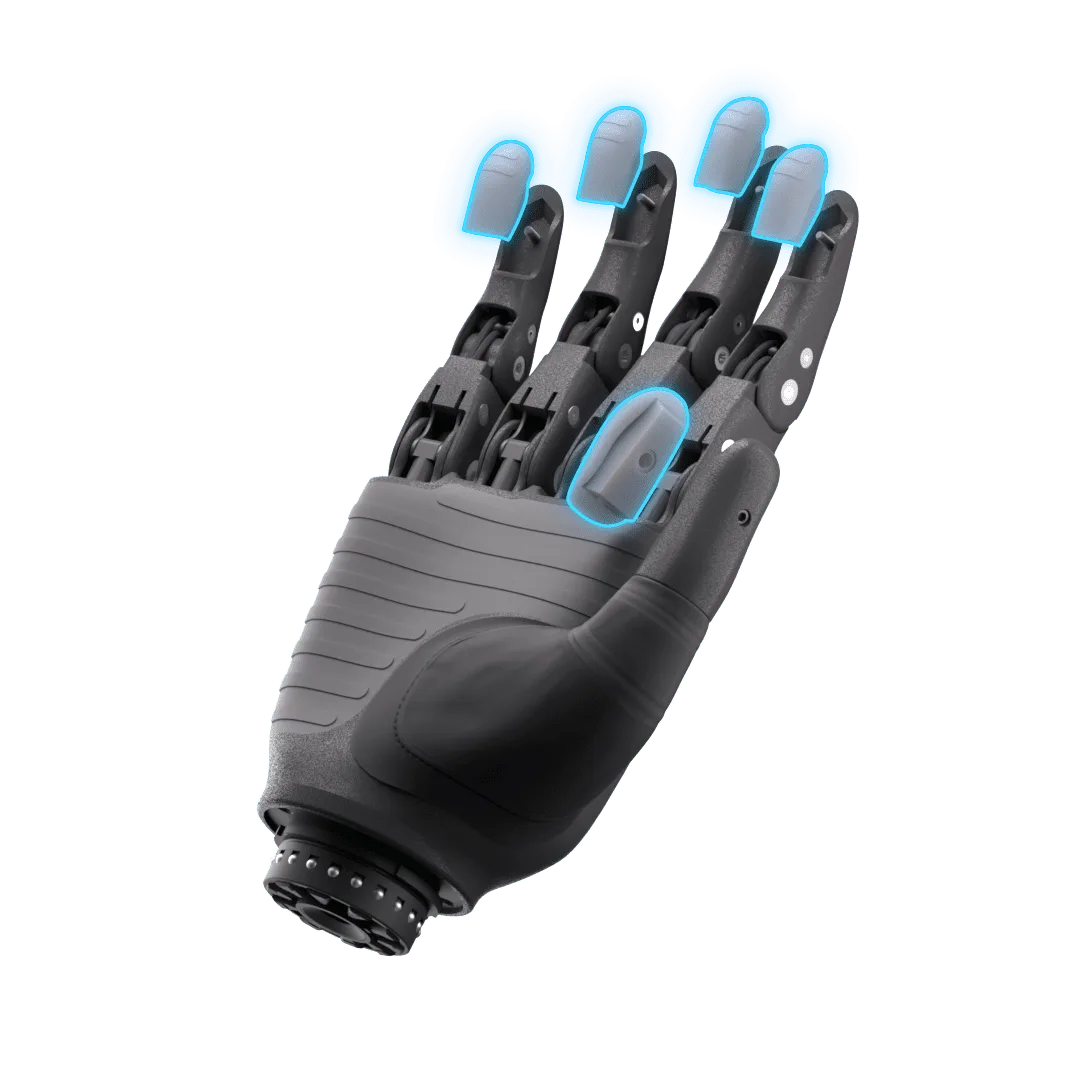

Genesis prosthetic hand. Picture courtesy of Alt-Bionics.
- Thumb rotation and flexion are powered by a devoted palm motor, eliminating handbook finger changes and actions.
- Visible suggestions on the again of the hand shows sign energy and battery life.
- A modular design that enables broken or worn finger modules to get replaced in seconds.
- Light-weight: One of many lightest prosthetic arms in the marketplace, weighing simply over 1 pound (1.02 lbs)
- Affordability: Priced at $6,000 — a fraction of conventional alternate options.
Nonetheless, the breakthrough wasn’t simply in electronics. To make this system viable for real-world use, Alt-Bionics needed to rethink its design.
Why 3D Printing?
Injection molding proved too inflexible — each actually and metaphorically. Testing with the end-use supplies was restricted, and each design iteration required costly and time-consuming retooling.
That’s when 3D printing piqued the curiosity of Saavedra. He and his crew tried FDM, SLA, and SLS 3D printing, however none of those strategies offered the sturdiness or design flexibility wanted. Nonetheless, they got here throughout Multi Jet Fusion and Nylon PA 12 — a pairing that modified all the pieces.
Genesis Hand 3D printed with MJF 3D printing. Picture courtesy of Alt-Bionics.
With Endeavor 3D’s experience in additive manufacturing, Alt Bionics may:
- Quickly take a look at over 67 design iterations with no tooling delays or prices.
- Obtain distinctive energy and adaptability with fingers abducting almost 60 levels earlier than exhibiting indicators of failure.
- Produce advanced geometries not potential via conventional means
- Optimize builds with strategic half placement and nesting to scale back prices and enhance floor end

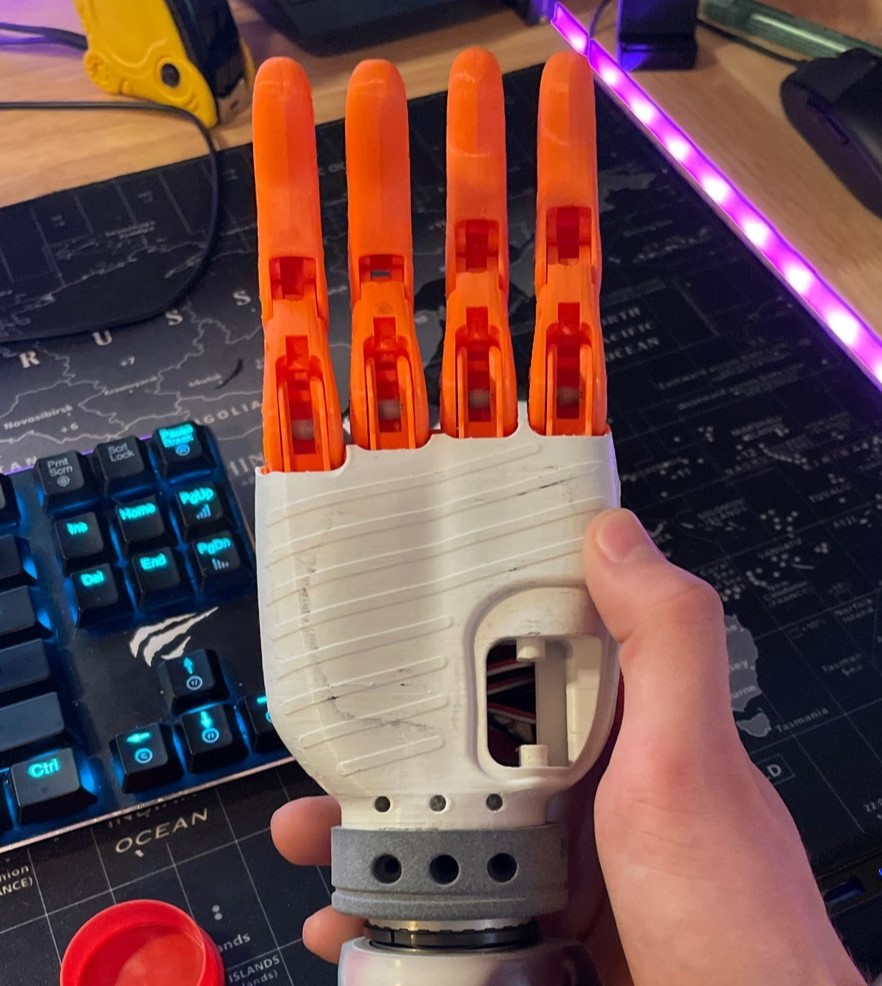

Failed SLA 3D printing prototype try. Picture courtesy of Alt-Bionics.
A Partnership That Pushed Limits
Working with Endeavor 3D wasn’t only a manufacturing choice — it was a leap ahead in what was potential. From the start, Endeavor 3D took measures to make sure high quality requirements have been aligned and exceeded with Alt-Bionics. Slightly than making use of a generic high quality assurance guidelines, our crew co-developed a customized Q&A worksheet, targeted on crucial surfaces and purposeful necessities of the hand. This allowed each side to drill down into particular tolerances and performance — not simply what regarded good, however what carried out below real-world situations.

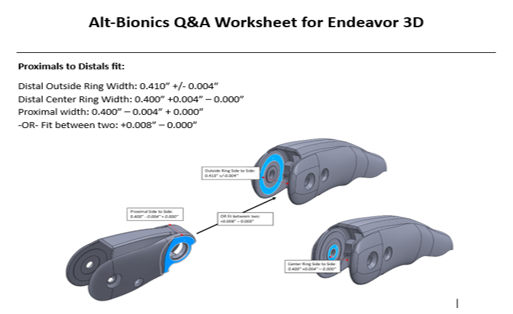

Alt Bionics Q&A worksheet for Endeavor 3D. Picture courtesy of Alt Bionics.
By understanding precisely the place the hand was experiencing points, we have been in a position to determine and resolve issues extra rapidly and successfully.
Due to Multi Jet Fusion and Endeavor 3D’s high-density construct methods, we persistently hit tolerance ranges inside 0.0005 inches — crucial for the superb motor management wanted in a bionic hand. This enabled Alt-Bionics to keep up distinctive half high quality whereas decreasing prices via optimized half orientation and sensible nesting within the construct chamber.
As Ryan Saavedra put it: “Alt-Bionics is ready to push the boundaries of prosthetic hand design and hit tolerance ranges we didn’t know potential with Endeavor 3D as our manufacturing companion.”
Constructing Past the Physique
With scalable manufacturing and modular performance, Alt-Bionics’ bionic prosthetic arms at the moment are obtainable in the marketplace. Nonetheless, the success of the Genesis Hand didn’t simply change the sport in prosthetics — it laid the groundwork for one more bionic hand innovation.
In below 9 months, leveraging the identical design framework and additive manufacturing methods, Alt-Bionics developed a completely purposeful humanoid robotic hand. Designed for the humanoid robotics market in addition to researchers, educators, and builders, the robotic hand mirrors the identical rules of accessibility, modularity, and superb motor management.
Due to additive manufacturing’s potential to retailer CAD information in a digital library, Alt-Bionics was in a position to adapt the unique prosthetic design right into a robotic platform with out ranging from scratch. It was the final word proof of idea — {that a} hand-built robotic to revive motion to people may additionally form the subsequent era of humanoid machines.
