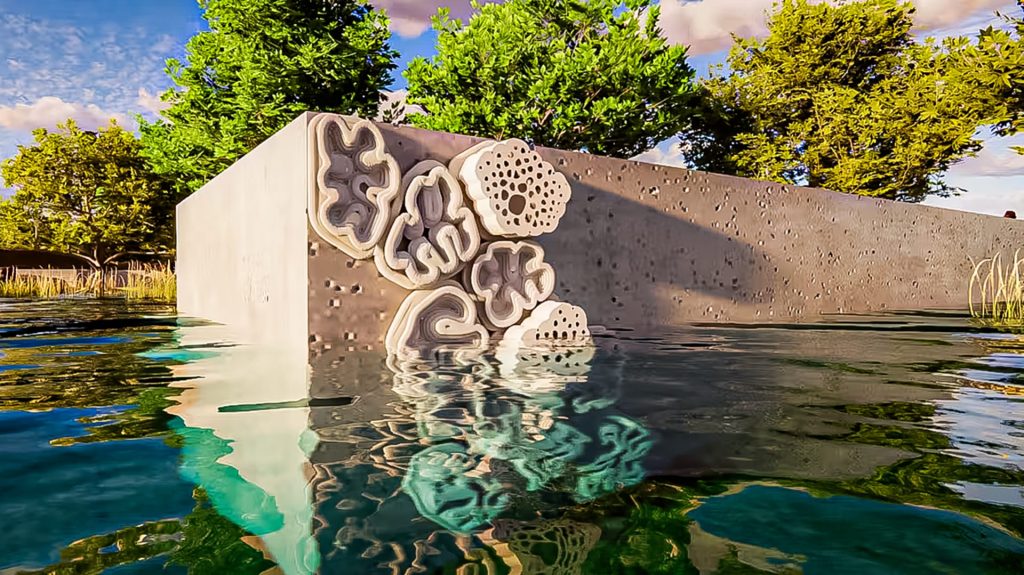

A modular concrete tile system developed at Florida Worldwide College (FIU) is being deployed to check how 3D printed surfaces can improve marine biodiversity, scale back shoreline erosion, and enhance city water high quality. Generally known as BIOCAP—brief for Biodiversity Enchancment by Optimizing Coastal Adaptation and Efficiency—the system is scheduled for pilot set up in spring 2025 at Morningside Park, a public website on Miami’s Biscayne Bay.
The analysis is led by Sara Pezeshk, a doctoral candidate in FIU’s School of Structure and a member of CREST CAChE, the college’s Heart for Aquatic Chemistry and Atmosphere. Her peer-reviewed paper on the system, printed by Springer Nature, outlines a hybrid infrastructure technique that mixes additive manufacturing, ecological design, and responsive materials techniques. Funding for the venture comes from the Nationwide Science Basis and the Environmental Safety Company.
Commonplace seawalls are engineered to dam waves however typically mirror vitality again into the water column, rising erosion and eliminating habitat zones. Pezeshk’s design introduces concave and convex tiles with shaded grooves, crevices, and recessed pockets—options supposed to imitate pure shoreline geometry. Every tile module is designed to retain water, modulate temperature, and increase floor space for colonization by marine organisms.
Filter-feeding species like oysters, barnacles, and sponges can scale back water turbidity and take away vitamins that contribute to algal blooms. Microhabitats embedded within the tile geometry present refuge from thermal stress and turbulence. Pezeshk’s analysis describes BIOCAP as a “multipurpose dwelling shoreline.” In contrast to constructed wetlands or reef installations, this method attaches to present seawalls, making it suitable with dense city infrastructure.

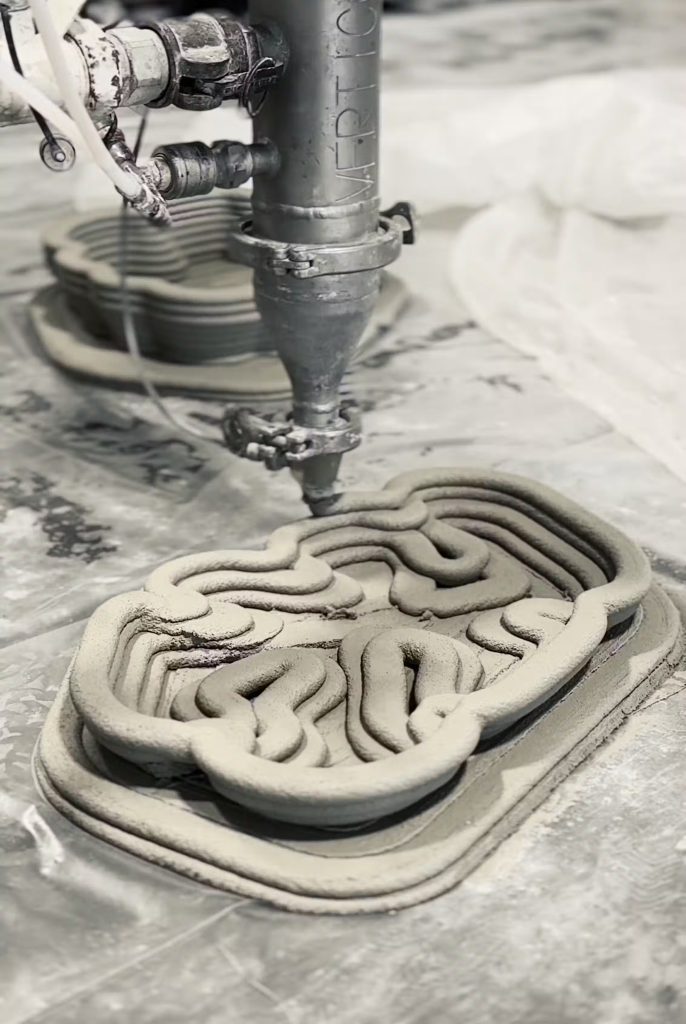

The tiles are fabricated utilizing 3D printing, enabling complicated floor formations that can not be solid utilizing customary molds. Pezeshk attracts inspiration from fossiliferous limestone—significantly coral patterns native to Florida’s coastal geology—to tell the floor morphology.Additive manufacturing permits management over groove depth, elevation shifts, and porosity.
This will increase each thermal variability and potential for organic attachment. Computational modeling, together with multi-objective optimization utilizing Wallacei, was used to configure the tile varieties underneath particular efficiency targets. Design variables embrace geometric texture, modular interconnectivity, and rhizomatic spatial logic. Slightly than inflexible arrays, BIOCAP makes use of a Voronoi-based system that mimics root networks and permits tiles to adapt fluidly to sediment motion and water movement.
Publish-installation analysis will deal with three primary efficiency indicators: biodiversity enhancement, water high quality enchancment, and wave vitality attenuation. Time-lapse underwater cameras will doc marine life colonization patterns throughout the textured tile surfaces. Species range, frequency, and habits shall be tracked over the venture’s two-year pilot window.
To evaluate environmental chemistry, a subset of prototype tiles is embedded with real-time sensors that monitor pH, dissolved oxygen, salinity, turbidity, and temperature. These metrics will assist decide whether or not microbial and invertebrate exercise close to BIOCAP tiles results in measurable modifications in water situations. Strain sensors may even be put in on each BIOCAP-modified and adjoining unmodified seawall sections to measure wave drive differentials underneath various tidal and storm situations. These information will quantify how the system performs in dissipating vitality in comparison with conventional vertical concrete partitions.
Methodology for BIOCAP attracts on architectural idea, materials habits, and environmental efficiency modeling. Within the Springer Nature publication, the system is framed throughout the context of far-from-equilibrium dynamics, emphasizing infrastructure that adapts to environmental forces relatively than imposing static varieties. A rhizomatic design mannequin—rooted in ecological root techniques and non-linear spatial idea—emphasizes distributed connectivity over hierarchical meeting. Tile models are described as self-organizing elements that function inside a bigger emergent framework formed by tidal patterns, temperature shifts, and organic interplay.
Slightly than eliminating seawalls, BIOCAP challenges their standard perform. The retrofit strategy repositions infrastructure as a habitat interface, able to supporting ecological processes as a substitute of performing as a tough boundary. The Miami deployment at Morningside Park will present a take a look at mattress for BIOCAP underneath real-world situations. If the system succeeds in decreasing erosion, rising habitat complexity, and bettering water high quality, it could be thought of for scaling in different city coastal zones.
